WiMAX

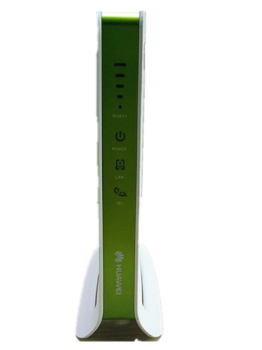

The Huawei Echolife BM622i WiMAX CPE is a next generation gateway device used in the Worldwide Interoperability for Microwave Access network. The CPE provides a new service experience for users. With the CPE, users can enjoy wireless broadband services. With the CPE, family and enterprise users can easily set up a network and enjoy the services over a wireless network.

Technical Specification of the HUAWEI BM622i:

* IEEE 802.16e-2005 WiMAX Air Interface

* IEEE 802.11b/g/n Wi-Fi Air Interface and support WPS

* Supports 2.3GHz for WiMAX, 2.4GHz for Wi-Fi

* 7 dBi Built-in Smart Antenna Array

* 802.16e Security for Authentication and Ciphering

* Maximum transmission rate of 20 Mbps downlink and 5 Mbps

* QoS Management, Based on classification

* Upgrade and Management, based on Web UI and TR-069/OMA-DM(Optional)

* 1POTS for SIP (RFC3261) VoIP and 1 FE with Advanced IP Networking features.

* Supports MIMO

* Supports 2Rx 2Tx

* Supports IP-CS and Ethernet-CS

* Supports Route Mode and Bridge Mode

* Supports WEB UI configuration tool (Bandwidth, Frequency, VoIP, Wi-Fi, Security etc)
