Product Name:

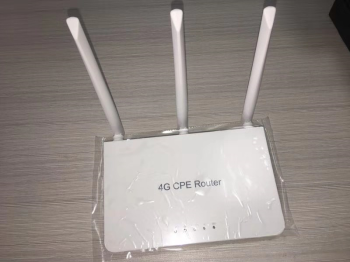

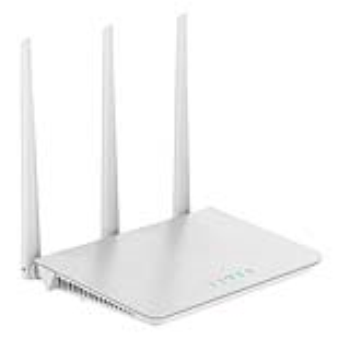

Cellular 4G LTE CPE Router Wireless RouterModel No:
TCPE-936Unit Price:
$55/pieceMimimum Order Quantity:
1Payment Term:
T/T,Westunion,Paypal,MoneygramDelivery Lead Time:
3 Days after PaymentPlace Of Origin:
China
Performance | Maximum Data Throughput |
FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL) TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL) DC-HSPA+/HSPA: Max 42Mbps/21.6Mbps(DL)/5.76Mbps(UL) WCDMA: Max 384kbps(DL)/384kbps(UL) EDGE: Max 236.8kbps(DL)/236.8kbps(UL) GPRS: Max 85.6kbps(DL)/85.6kbps(UL) EVDO RevA: Max 3.1Mbps(DL)/1.8Mbps(UL) CDMA1x: Max 153.6kbps(DL)/153.6kbps(UL) |
Hardware | Receive Diversity | Support Receive Diversity |
MIMO | Support DL 2x2 MIMO | |
BB Chipset | Qualcomm MDM9X07 | |
RF Chipset | Qualcomm WTR2965 | |
WiFi Chipset | RTL8192(802.11b/g/n) | |
Memory | 4Gb+2Gb | |
power consumption | <12W | |

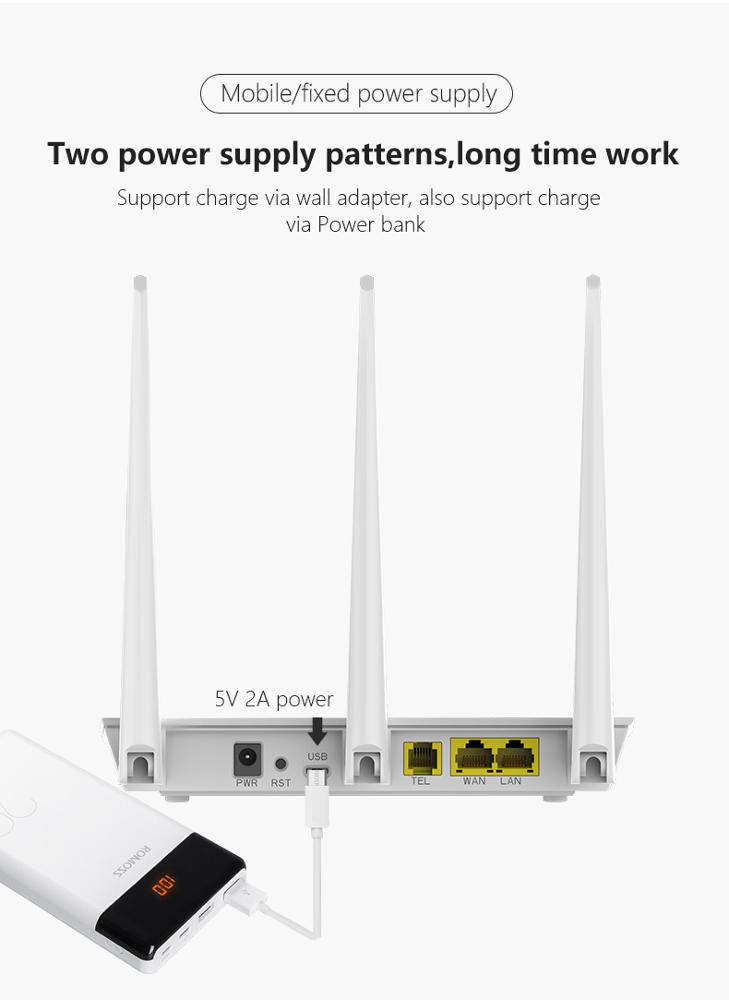

Power Voltage | DC12V/1A | |
USIM/SIM |
2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |
|

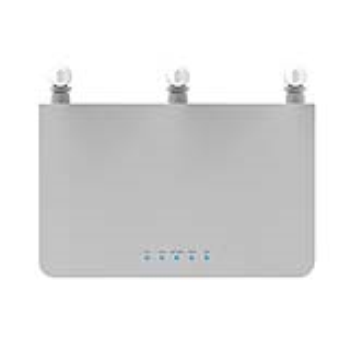

LED | Power Indication LED,WAN Signal Strength, WiFi/WPS Indication LED, WAN/LAN Status LED,Internet Status LED, | |
USB | USB 2.0 | |
Antenna | Internal Antenna only | |
Buttons | POWER,Reset,WPS | |
Slic | SI32185 | |

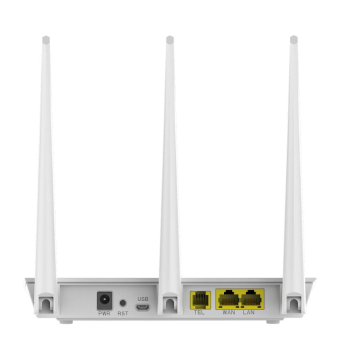

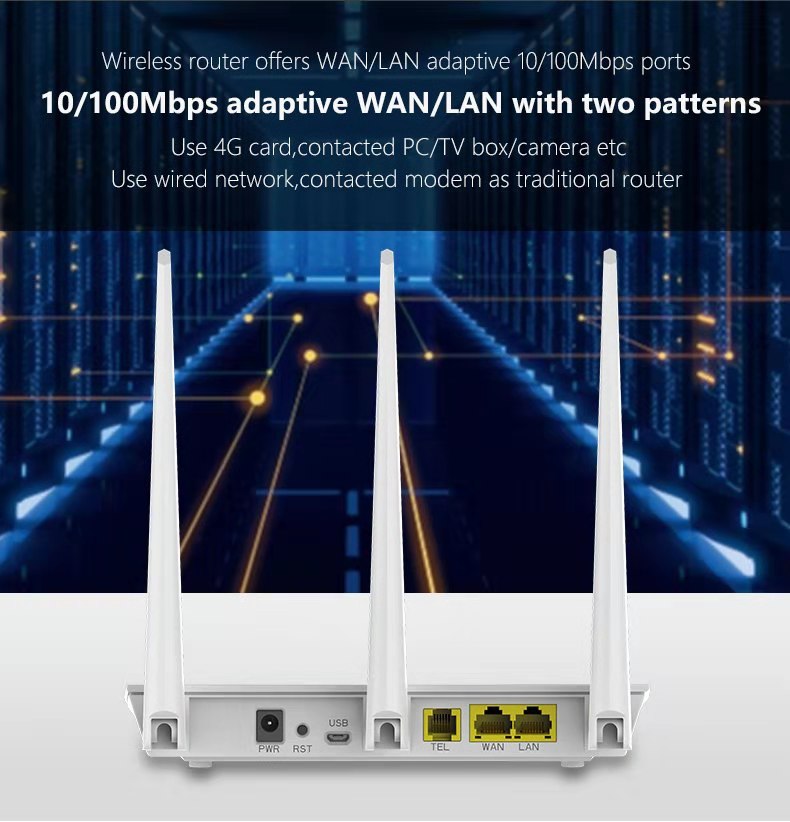

Ethernet | 1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port | |
RJ11 | RJ11x2 | |
Reset | Pinhole | |
ESD | ESD Protection circuit;Contact±8KV,Air±10KV | |
Battery | Not Support | |
Software | SW Update | TR069 & Local Update |
WIFI Mode | AP mode only, AP+STA is Optional | |
WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; | |
SMS & Phone Book | Not Support by default, can be customized | |
USB Function | Default no USB port, can be customized | |
Voice | VoLTE & CS Domain voice & VOIP | |
AGPS |
AGPS, no separate GPS chipset. No information need to be displayed |
|
IPv4 | Support IPv4 | |
IPv6 | Support IPv6 | |
Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
Data Statistics | Support | |
VPN Pass Through | PP2P/L2TP/IPSec | |
SIM Lock | Support | |
WAN Fallback to ETH | Manually | |
HTTP | Support | |
Certification | Depends on customization, cost related | |
Environment | Operating Temperature | Normal:-10°C to +65°C; |
Storage Temperature | -20° C to +85° C | |
Humidity | 5%~ 95% |
