Huawei ME906E Module Technical Specifications:

* LTE (FDD) B1/B2/B3/B5/B7/B8/B20

* Quad-band DC-HSPA+/HSPA+/HSPA/UMTS 2100/1900/900/850 MHz

* Quad-band EDGE/ GPRS/GSM 1900/1800/900/850 MHz

* GNSS GPS L1: 1575.42 MHz Glonass L1: 1602 MHz

* Receive diversity DC-HSPA+/HSPA+/HSPA/UMTS 2100/1900/900/850 MHz MIMO HSPA+/DC-HSPA+ DL 2*2 MIMO LTE: DL 2*2 MIMO

* Max. transmitter power WCDMA/HSPA+:+24dBm (Power Class 3) GSM/GPRS 1900MHz/1800MHz: +30dBm (Power Class 1) GSM/GPRS 900M/850MHz: +33dBm (Power Class 4) EDGE 1900MHz/1800MHz: +26dBm (Power Class E2) EDGE 900M/850MHz: +27dBm (Power Class E2) LTE:Accorded with 3GPP TS 36.101 R8 Class 3(23dBm)

* Control via AT commands 3GPP TS 27.007 and TS 27.005 Huawei extended AT command

* SIM card supply voltage 1.8V/3.0 V UICC (SIM/UICC/UIM), ISIM supported

* Supply voltage range 3.135V~4.4V (3.3 V recommended)

* Temperature range Normal operation: -10°C to +55°C Extended operation: -20°C to +70°C Storage: -40°C to +85°C

* Humidity: 5% - 95%

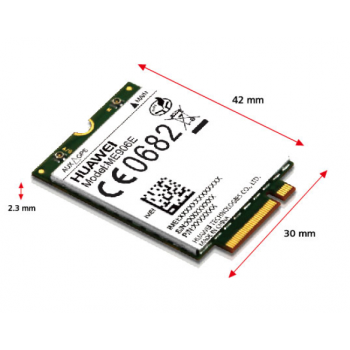

* Dimensions: 42 mm x 30 mm x 2.3 mm

* Weight: <6g

* OS: Windows 7 / Windows 8 / Android 4.0

Interfaces:

* Antenna interfaces x 2

* NGFF Socket 2

- USB 2.0 interface high speed

- Power supply

- UICC interface

Approvals & Certifications

* CE

* FCC

* GCF

* RoHS Compliant/ Halogen free

* Operator TA: Vodafone, Telefonica, Telstra, TMO

Additional Features

* GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass

* SIM Hotswap

* IPV6

* BodySAR

* Ultrabook feature support(ACT,QC, WiFi Offload , DPTF)

* Tunable Antenna
