Module

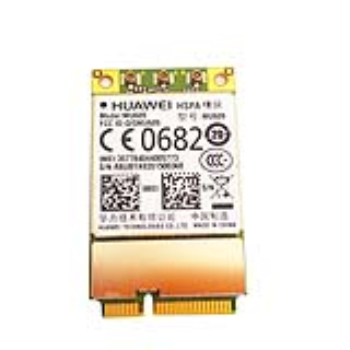

HUAWEI MU609 Mini PCIe is a variant of MU609 with standard Mini PCIe form factor. MU609 Mini PCIe is high-quality designed HSPA module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

HUAWEI MU609 Mini PCIe supports 14.4Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA networks. The module also include enhanced features like embedded TCP/IP stack, FOTA, STK, and Huawei enhanced AT commands.

Huawei MU609 Mini PCIe Specifications:

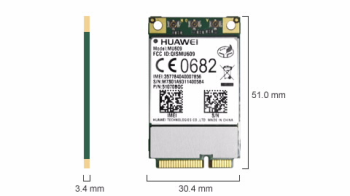

* Form Factor: Mini-PCIe

* HSPA+/UMTS quad-band 850/900/1900/2100 MHz

* GSM/GPRS quad-band 850/900/1900/2100 MHz

* Data transfer rates: Downlink:14.4 Mbps, Uplink: 5.76 Mbps

* Interfaces:

- 3 Antenna connectors

- PCIe interface

- USB 2.0 High speed

- PCM Voice

- JTAG

- SIM Interface (1.8V/3.0V)

- Power supply

- Reset

- Power_On off

* Power Supply: 3.2 V to 4.2 V (typical: 3.8 V)

* Support PCM Voice

* Normal Operation: -20℃ to 70℃

* Extended Operation: -40℃ to 85℃

* Support GPS, A-GPS, FOTA, STK, Huawei enhanced AT commands

* Support Linux, Android

* Approvals

- CE

- CCC

- GCF

- PTCRB

- FCC

- RoHS Compliant
