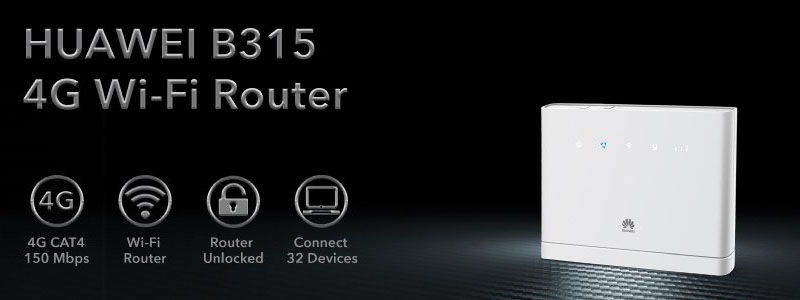

Huawei B315 is a new 4G LTE CPE with LTE Category 4 technology. Huawei B315s modem could achieve LTE connection of up to 150Mbps through its Gigabit Ethernet port. There are four Ethernet ports for LAN/WAN. It also features a USB 2.0 port for HDD, flash drives, network storage devices and printers. The B315 LTE CPE could cover smoother wireless network for 250 meters. Even after a successful upgrade, you can easily restore software to the previous version. Simply hold the WPS and Power buttons for a seamless rollback. With the LTE CPE B315, the brother model Huawei B310 LTE CPE is also presented with less LAN ports and no USB port.

Huawei LTE CPE B315  modem Technical Specifications:

* 4G LTE Category 4 CPE

* Huawei B315s-22: 4G LTE B1/B3/B7/B8/B20 (FDD 800/900/1800/2100/2600MHz)and TD-LTE B38 (2600MHz)

* Huawei B315s-607: 4G Band 1/3/7/8/28/40 (FDD 700/900/1800/2100/2600 & TDD 2300Mhz)

* Huawei B315s-936: 4G Band 1/3/40/41 (FDD 1800/2100 & TDD 2300/2500Mhz)

* Huawei B315s-608: 4G Band 1/3/5/7/28 (FDD 700/850/1800/2100/2600MHz)

* 3G UMTS B1/B5/B8

* GSM B2/B3/B5/B8

* High-speed data access:

− LTE FDD: DL 150 Mbps, UL 50 Mbps

− LTE TDD: DL 112 Mbps, UL 10 Mbps

− DC-HSPA+: DL 42 Mbps, UL 5.76 Mbps

− HSPA+: DL 21 Mbps (64QAM) / 28 Mbps (MIMO), UL 5.76 Mbps

− HSPA: DL 14.4 Mbps, UL 5.76 Mbps

− WCDMA PS: 384 kbps

− EDGE: DL 296 kbps, UL 236.8 kbps

− GPRS: 85.6 kbps

* LTE Download speed to 150mbps, upload speed to 50Mbps

* WiFi 802.11b/g/n, Wireless speed to 300Mbps

* Up to 32 wireless users could be connected simultaneously

* Support maximum data transmission rate of 300 Mbps 802.11b/g/n

* Two connectors for external antennas (SMA Type, buy Huawei B315 Antenna)

* USB 2.0 host port

* Support for HUAWEI Mobile WiFi App

* WPS 2.0

* Power consumption: < 12 W

* AC/DC power supply

    - AC: 100 V - 240 V

    - DC: 12 V/1 A

* Temperature:

    - Working temperature: 0°C to 40°C

    - Storage temperature: -20°C to +70°C

* Humidity: 5% - 95%

* HOTA updates

* Built-in DHCP Server, DNS RELAY and NAT

* Compatibility with RJ11 telephone ports; can be set to Voice over Internet Protocol (VoIP) or Circuit Switch (CS) voice mode

* Security services. Provides instant protection to block potential security risks and intrusion attempts

* Windows 8.1, Windows 8, Windows 7, Windows Vista SP1/SP2, Windows XP SP3, and Mac OS X 10.9, 10.8, and 10.7 with latest upgrades

* User-friendly design of LED indicator. Easy to observe the status of equipment.

* Dimensions: 186.0mm x 139.0mm x 46.0mm

* Weight: about 275g
