WiFi Hotspot

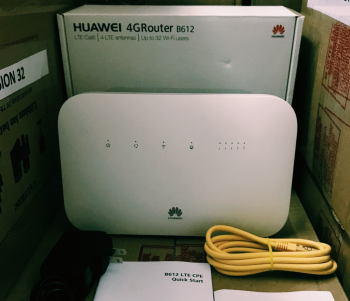

Huawei B612 LTE CPE is a new 4G LTE wireless gateway that integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and diversified data access and voice services. Huawei B612 Smart Hub connects up to 32 Wi-Fi enabled devices without sacrificing connection quality or speed. With the support of LTE Category 6, the B612 Smart Hub is LTE Advanced-enabled, featuring download speeds up to 300Mbps and upload speeds up to 50Mbps - making it the perfect smart hub for any workplace. The B612 Smart Hub also supports up to four wired connections such as desktop computers, laptops, smartphones, tablets, and other devices through Ethernet connection. Thanks to a slim profile, the Huawei B612 4G Router can be easily used in any work environment. It comes with an angled backrest for increased convenience.

Huawei B612s-25d supports:

* LTE: B1/B3/B7/B8/B20/B38/B40/B41(2545~2655MHz)/B42/B43

* DC-HSPA+/HSPA+/HSPA/WCDMA: B1/B8

* EDGE/GPRS/GSM: B2/B3/B5/B8

* 4*4 MIMO: B3/B7/B20/B38/B40/B41/B42/B43

Huawei B612s-51d supports:

* LTE: B2/B4/B5/B7/B41(2545~2655MHz)

* DC-HSPA+/HSPA+/HSPA/WCDMA: B1/B2/B5

* EDGE/GPRS/GSM: B2/B3/B5/B8

* 4*4 MIMO: ?

Huawei B612 LTE WiFi Router mainly supports the following features:

* Access to LTE wireless networks

* Access to Gigabit Ethernet networks

* High-speed data access

− LTE FDD: DL 300 Mbit/s, UL 50 Mbit/s

− LTE TDD: DL 210 Mbit/s, UL 10 Mbit/s

− DC-HSPA+: DL 42 Mbit/s, UL 5.76 Mbit/s

− HSPA+: DL 21 Mbit/s (64QAM) / 28 Mbit/s (MIMO), UL 5.76 Mbit/s

− HSPA: DL 14.4 Mbit/s, UL 5.76 Mbit/s

− WCDMA PS: 384 kbit/s

− EDGE: DL 296 kbit/s, UL 236.8 kbit/s

− GPRS: 85.6 kbit/s

* Complies with wireless 802.11b/g/n standards with data rates up to 300 Mbit/s

* Support up to 32 wireless devices

* SMS

* IPv4 /IPv6 dual stack

* Compatibility with RJ11 telephone ports; support VoLTE voice(customizable function), can be set to Voice over Internet Protocol (VoIP) voice mode or Circuit Switch (CS) voice mode

* External LTE antenna port

* Support for Huawei HiLink App

* WPS 2.0

* HOTA updates

* Built-in DHCP Server, DNS RELAY and NAT

* Security services. Provides instant protection to block potential security risks and intrusion attempts

* Windows 7, Windows 8, Windows 8.1, Windows 10 (does not support Windows RT), MAC OS X 10.9, 10.10, 10.11 and 10.12 with latest upgrades

* User-friendly design of LED indicator. Easy to observe the status of equipment

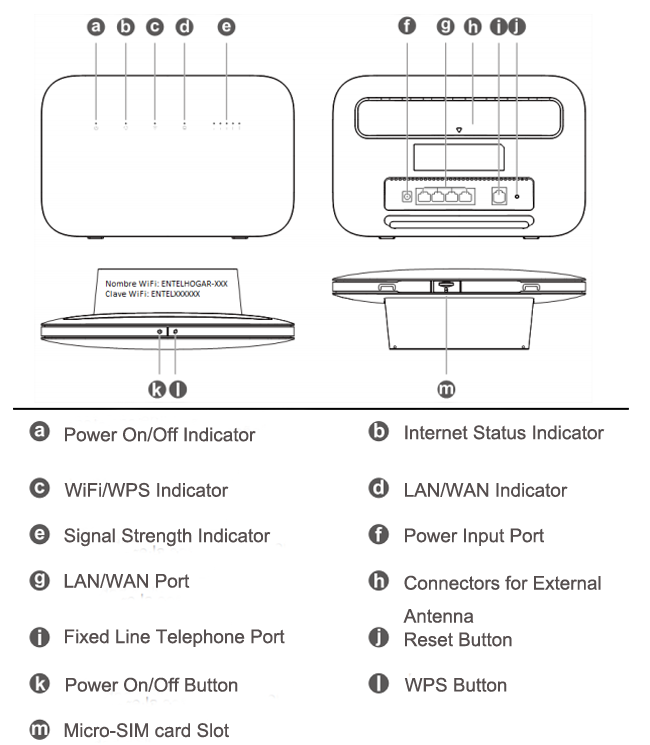

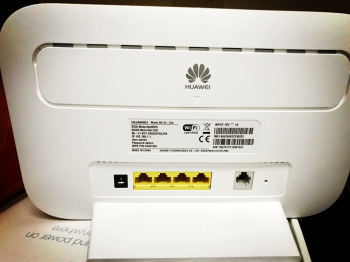

* External port

− One power adapter port

− Three LAN port (RJ45)

− One LAN/WAN port (RJ45)

− One phone port (RJ11)

− Two external LTE antenna ports (SMA)

− One micro-SIM card slot

* Power consumption: < 12W

* AC/DC power supply

  - AC: 100 V - 240 V

  - DC: 12 V/1 A

* Temperature:

  - Working temperature: 0°C to 40°C

  - Storage temperature: -20°C to +70°C

* Humidity: 5% - 95%( Non-condensing)

* Dimensions(Maximum): 240mm × 155mm × 78mm

* Weight: About 430g (excluding the power adapter)
