Huawei ME906s-158 technical specifications:

* Category: LTE Cat4 Module

* Form Factor: 75-pin M.2/NGFF

* Support 4G LTE (FDD) B1/B2/B3/B5/B7/B8/B20/B28

* LTE FDD: DL 150 Mbps/UL 50 Mbps @20M BW cat4

* Support 3G DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8

* DC-HSPA+: DL 42Mbps/UL 5.76 Mbps

* HSPA+: DL 21.6 Mbps/UL 5.76 Mbps

* WCDMA PS: DL 384 kbps/UL 384 kbps

* Support 2G EDGE/GPRS/GSM 1900/1800/900/850 MHz

* LTE DL 2*2 and 4*2 MIMO

* Power supply: 3.135 V to 4.4V (typical: 3.3V)

* AT commands:

- 3GPP TS 27.007 and 27.005

- Huawei extended AT command

* SMS Features

- Supports MO / MT

- Supports formats of PDU

- Point-to-point and cell broadcast

* Additional Features

- GNSS: GPS Standalone, A-GPS, LTO, Glonass

- SIM Hotswap

- IPV6

- BodySAR

- Tunable Antenna

* Interfaces

- Antenna interfaces x 2

- M.2 Socket

- Signal Control interface

- USB 2.0 interface high speed

- UICC interface

- Power supply

* OS: Windows 7/8/8.1/10/ Android 4.x or later

* Temperature range

- Normal operation: -10°C to +55°C

- Extended operation: -20°C to +70°C

- Storage temperature: -40°C to 85°C

- Humidity: 5% - 95%

* Approvals & Certifications

- CE

- GCF

- FCC

- RCM

- NCC

- RoHS & WEEE Compliant

- Operator TA: Vodafone, Orange, Telstra, Telecom NZ

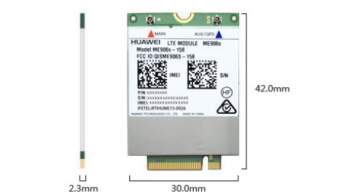

* Dimensions: 42 mm x 30 mm x 2.3 mm

* Weight: approx. 6g

ThinkPad Huawei ME906S 4G LTE Mobile Broadband is compatible with the following machines:

ThinkPad T460, ThinkPad T460s, ThinkPad T460p, ThinkPad T560

ThinkPad P50s

ThinkPad X260

ThinkPad Yoga 260, ThinkPad Yoga 460, ThinkPad S1 Yoga

ThinkPad X1 Carbon, ThinkPad X1 Yoga

ThinkPad L460, ThinkPad L560
