Module

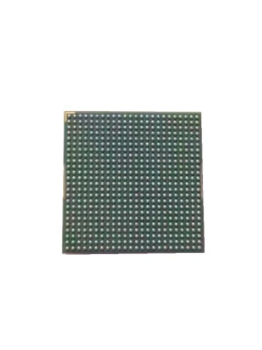

The Sierra Wireless AirPrime WMP100 intelligent embedded module is an feature-enhanced GSM/GPRS microprocessor for applications requiring mid-range performance. The BGA form factor and dedicated IOs are suited for automated component placement and enables you to optimize your total system cost. It provides full pinout and software compatibility with the AirPrime WMP50 for easy system scalability.

Key features:

Quad-band global GSM/GPRS connectivity on the 800, 900, 1800 and 1900 MHz frequency bands

Programmable ARM9 32-bit processor at 104MHz

Automated assembly

Form factor compatibility with entire WMP Series

Compact size, only 25 x 25 x 3mm

Key benefits:

Full pinout and software compatibility with other WMP Series modules

Improved time to market

Reduced total system cost and size and performance

Fully automated, high volume production

Air Interface            GSM GPRS

Frequency Bands           850/900/1800/1900 MHz

Approvals               R&TTE, CE, GCF, FCC, PTCRB, China RTE, AT&T

Alarm Power              16uA

Standby and Idle Power      2.5mA

GSM GPRS Max Power         400mA

CPU Processor Performance    ARM946/DSP
