Wireless Module

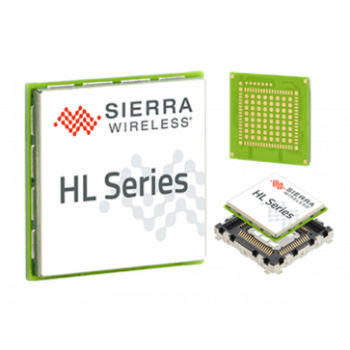

Sierra Wireless AirPrime HL7618 is a 4G LTE cat.1 embedded wireless module primarily for North America. It supports 4G LTE frequency bands: B4 (1700) and B13 (700). FREE unlimited FOTA and AirVantage Cloud ready, AirPrime HL7618 is optimised for IoT and M2M applications where for example low cost and low power consumption are key parameters.

Sierra AirPrime HL7618 Hightlights:

* Compact CF3 form factor for easy integration

* Low cost, very low power consumption

* Region: North America

* Reliable proven IoT and M2M connectivity

* Compatible footprint size with the rest of the HL series

* Secure boot and value-add firmware with free unlimited firmware over-the-air upgrades

Sierra AirPrime HL7618 Technical Specifications:

* Region: Primarily for North America

* Form factore: LGA

* Air interface: 4G-LTE cat 1

* Chipset: Qualcomm MDM9230

* 4G Bands: B4 (1700), B13 (700)

* Peak data rate: DL 10 Mbps, UL 5 Mbps

* Form factor: CF3 SMD LGA package

* Supply Voltage: 3.7 V nominal, max 4.5 V

* Separate Base Band (min 3.2 V) and PA (min 2.8 V) power supply inputs for extended battery life

* Operating Temperature: -40°C to +85°C

* Control options: AT Commands

* Internet services: TCP, UDP, FTP, HTTP, HTTPS, SMTP, POP3, SSL

* Host OS: Android, Linux, Windows

* FOTA: Free and unlimited through AirVantage

* Cloud service: AirVantage Cloud ready

* Network scan and monitoring

* Jamming detection

* Antenna detection

* Interfaces

- 1x UART, 8 wire

- 1x USB 2.0 Full Speed

- 1x ADC

- 12x GPIO

- 1x VGPIO

- 2x System Clock Out

- 1x Active Low RESET

- 1x Active Low POWER ON

- 1x SIM interface: 1.8/3V

- 1x Tx On

- 1x RF Rx/Tx port

- 1x Debug

- 1x JTAG

- 1x Backup Battery

* Dimensions: 22 x 23 x 2.5 mm

* APPROVALS

- Regulatory: PTCRB, FCC, GCF, IC, CE
