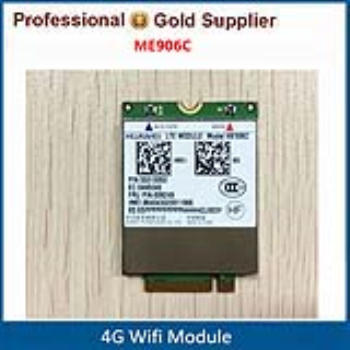

Huawei ME906C LTE Module Technical Specifications:

* Model number: ME906C

* Manufacturer: Huawei

* Form Factor: 75-pin M.2/NGFF

* Bands:

- LTE TDD:B38,B39,B40,B41

- LTE FDD:B1,B3,B8

- HSPA+:B1,B2,B5,B8

- TD-SCDMA:B34,B39

- GSM/GPRS/EDGE: B2,B3,B8

* Data Transfer Rates:

- TDD LTE:Cat3 (61/18Mbps)

- FDD LTE:Cat3 (100/50Mbps)

- TD-SCDMA (384/384kbps)

- TD-HSPA+(4.2/2.2Mbps)

- DC-HSPA+ :(42/5.76Mbps)

* Interface

- Antenna interface

- 50 ohm antenna connector

- USB 2.0 full speed

- Power supply

- USIM Card (1.8V/3.0V)

* Power Supply: 3.135 V to 4.4 V (typical: 3.3 V)

* Voice: N/A

* Temp Range

- Normal Operation: -10℃ to 55℃

- Extended Operation: -20℃ to 70℃

* Approvals

- CCC

- Jate

- Telec

- NCC

* Dimensions (L × W × H): 42 mm × 30 mm × 2.3 mm

* Weight: around 6 g
