Wireless Module

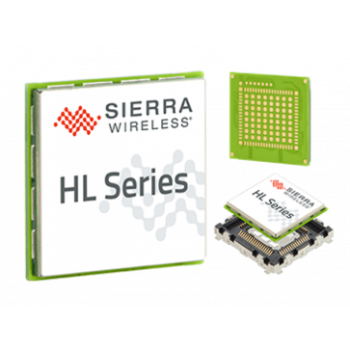

Sierra Wireless AirPrime HL7690 is a 4G/LTE Cat-1 band embedded wireless module. It offers a low cost, low power solution for Europe-base deployments. The AirPrime HL7690 module is the smallest, scalable, flexible solution in a compact and easy-to-integrate form factor that is completely interchangeable among 2G, 3G, and 4G technologies. Compact form factor, network scalability, and ready-to-use firmware upgrades make these modules ideal for industrial M2M solution designs where size and deployment longevity are important considerations.

Sierra HL7690 Hightlights:

* Compact CF3 form factor for easy integration

* Support 4G LTE Cat.1 frequency bands(B3/B8/B20)

* Used for Europe region

* Very low power consumption

* Reliable proven IoT and M2M connectivity

* Compatible footprint size with the rest of the HL series

* Secure boot and value-add firmware with free unlimited firmware over-the-air upgrades

Sierra AirPrime HL7690 Technical Specifications:

* Form factor: CF3 SMD LGA package

* Snap-in Socket Option: Yes

* Shieldcan Technology: Yes

* 4G LTE Cat.1 Frequency Bands: B3/B8/B20

* Fallbacks: N/A

* Regulatory Approvals: CE, GCF

* Carrier Approvals: KPN

* Power Consumption

- Power supply for extended battery life: 2.8V

- Alarm: 110μA

- Standby and Idle(Typ Sleep): 1.4mA

- LTE max: 750μA

* Audio

- Digital Audio

* Interfaces

- UART (8)

- USB (1)

- ADC (2)

- GPIO (8)

- Flash LED Output (1)

- PWM (Buzzer) (1)

- Tx Burst Indicator (1)

- SIM interface 1.8V/3V (DSSS Support) (1)

* Internet Services: TCP + UDP + FTP + HTTP + HTTPS

* Software and Drivers:

- Secure Boot

- Pre-Certified Firmware

- Linux Driver: Standard ECM

- Android RIL

* Cloud Services

- Free Unlimited FOTA Upgrades

- SIM Management Option

- Device Management Option

- Data Storage/ Application Enablement Platform Option

* Operating Temperatures Range: Industrial Grade -40°C to +85°C

* Dimensions: 22 x 23 x 2.5 mm
