  • Product Name:

    HUAWEI MU509 HSDPA M2M LGA Module
  • Model No:

    MU509
  • Unit Price:

    $29/piece
  • Mimimum Order Quantity:

    100
  • Payment Term:

    T/T,Westunion,Paypal,Moneygram
  • Delivery Lead Time:

    3 Days after Payment
  • Place Of Origin:

    China
Contact Now
Detailed Product Description

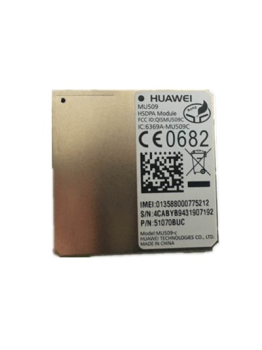

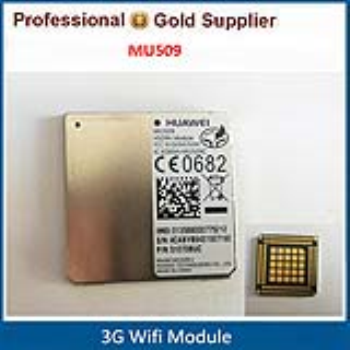

HUAWEI MU509 is a dual-band UMTS/HSDPA wireless module supporting downlink data rates up to 3.6Mbps and uplink data rates up to 384kbps. There are three versions of MU509 which meet different market requirements:





HUAWEI MU509-b: Supporting for UMTS/HSDPA 900/2100MHz



HUAWEI MU509-c: Supporting for UMTS/HSDPA 850/1900MHz



HUAWEI MU509-g: Supporting for UMTS/HSDPA 850/2100MHz







HUAWEI MU509 Specifications:





Products Features:





* Dual-band UMTS/HSDPA (WCDMA/FDD)



- MU509-b: 900/2100MHz



- MU509-c: 850/1900MHz



- MU509-g: 850/2100MHz



* Quad-band GSM GPRS: 850/900/1800/1900MHz



* EDGE Multi-slot class 12





* Data Fatures:





- GSM CS: UL (9.6kbps)/DL (9.6kbps)



- GSM/EDGE: Multi-slot class 12, class 8



- WCDMA CS: UL (64kbps)/DL (64kbps)



- WCDMA PS: UL (384kbps)/DL (384kbps)



- HSDPA: DL (3.6Mbps)





* Output Power:



- WCDMA/HSDPA 900/2100MHz: +24 dBm (Power Class 3)



- EGSM850 Class 4 (2W)



- EGSM900 Class 4 (2W)



- GSM1800 Class 1 (1W)



- GSM1900 Class 1 (1W)





* Sensitivity



- GSM 850/900/1800MHz: -109 dBm



- GSM 1900MHz: -107 dBm



- WCDMA 850/900 MHz: -110 dBm



- WCDMA 1900 MHz: -108 dBm



- WCDMA 2100 MHz: -109 dBm





* Control via AT commands:



- 3GPP TS 27.007 and 27.005



- HUAWEI Extended AT Command



* Embedded TCP/IP Stack, including UDP protocol



* Power supply: 3.3 V to 4.2 V (Typical: 3.8 V)



* Temperature range: Normal Operatation: -20 degree to 70 degree



* Humidity: 5% - 95%



* Dimensions: 30 mm x 30 mm x 2.65 mm



* Weight: 7g







Interfaces:





- Antenna interface



- 145-pin LGA connector



- power supply



- Analog Audio



- UART



- SIM 1.8 V/ 3.0V



- Reset



- Multiple GPIOs







Approvals & Certifications:





- CE



- PICRB(MU509-C)



- GCF (MU509-B)



- ROHS Compliant



- FCC



- CCC





Supplementary Service





- Caller ID Display



- Call forwarding/hold/waiting



- USSD
