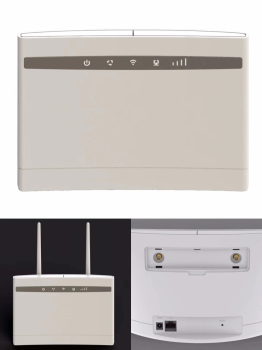

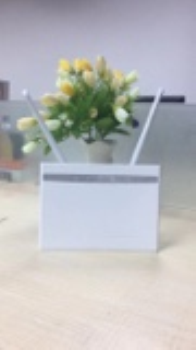

Wifi Router

电池Battery

Support

供电方式Power supply

USB

电源适配器Charger

12V-1A

无线通信芯片提供商Wireless communication chipset

ZTE Microelectronics

WiFi芯片提供商WiFi chipset

ZTE Microelectronics

CPU芯片型号 CPU model

ZX297520 V3

WiFi /Bluetooth芯片型号 WiFi /Bluetooth model

RTL8192ES

SIM卡槽 SIM slot

SIM MICRO

设备内存Device memory

Flash/RAM:  1G Nand Flash

外接存储设备External storage device

N/A

USB接口 USB interface

最大WiFi接入用户数量 Max. WIFI Users

10

指示灯/显示屏Indicator/ Display

Choose one

射频芯片Radio frequency chip

ZX234220FULLMASK_V1

主天线Main antenna

Inner

分集接收天线Diversity receiving antenna

Inner

WiFi天线 WIFI antenna

Inner

LTE 频段 LTE band

FDD Band 1/3/5//8
TDD Band 38/39/40/41

TD-SCDMA 频段 TD-SCDMA band

Band 34/39

WCDMA频段WCDMA band

Band 1/5/8

分集接收频段Diversity receiving band

LTE Support LTE

无线MIMO技术Wireless MIMO technology

N/A

无线发射功率Wireless transmit power

TDD-LTE：23dbm±2dbm
FDD-LTE：23dbm±2dbm
TD-SCDMA：23dbm±2dbm
WCDMA :23dbm±2dbm

WiFi 频段 WIFI band

Support 2.4GHz

WiFi MIMO技术 WIFI MIMO technology

Support 802.11b/g/n 1*1

LTE

TDD-LTE:Cat4 130 Mbps DL / 35Mbps UL                            FDD-LTE Cat4 150 Mbps DL / 50Mbps UL

TD-SCDMA

DL 4.2Mbps
UL 2.2Mbps

WCDMA

DL 21Mbp
UL 5.76Mbps

3GPP/3GPP2 protocol

LTE FDD/TDD Rel 9

WiFi standard

802.11 b/g/n(1*1 only)

WiFi Authentication

WPA-PSK/WPA2-PSK default

WPS Function

No

开关机按钮 Switch button

Yes

Reset按钮 Reset button

Yes

WPS 按钮 WPS button

No

工作温度Operating temperature

-10~ 60° C

存储温度Storage temperature

-45 ~ 85° C

湿度Humidity

10%~ 95%

待机时长Standby time

72 hours

工作时长Working time

4-8 hours
