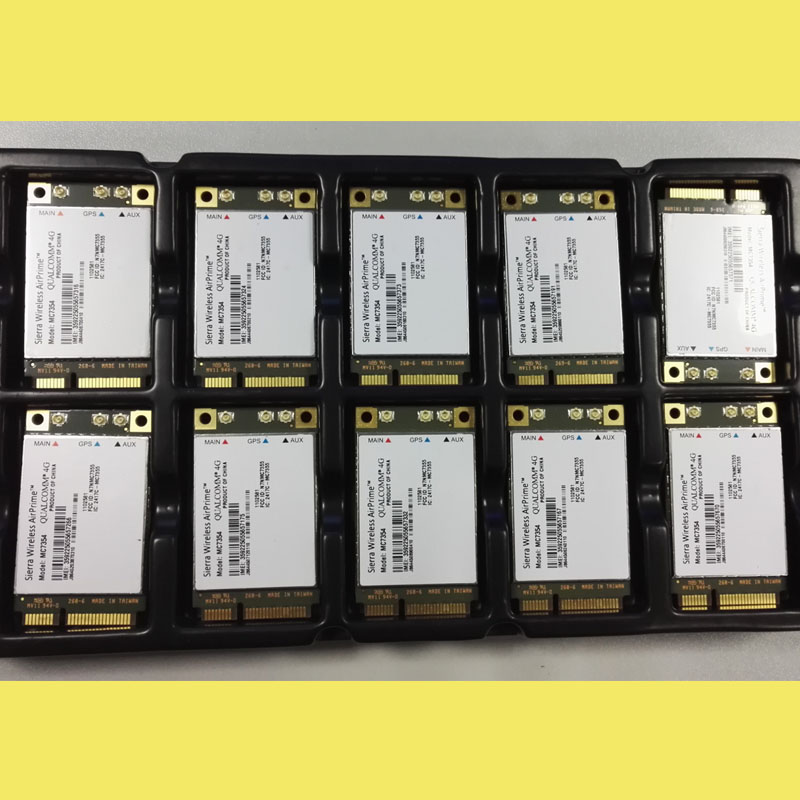

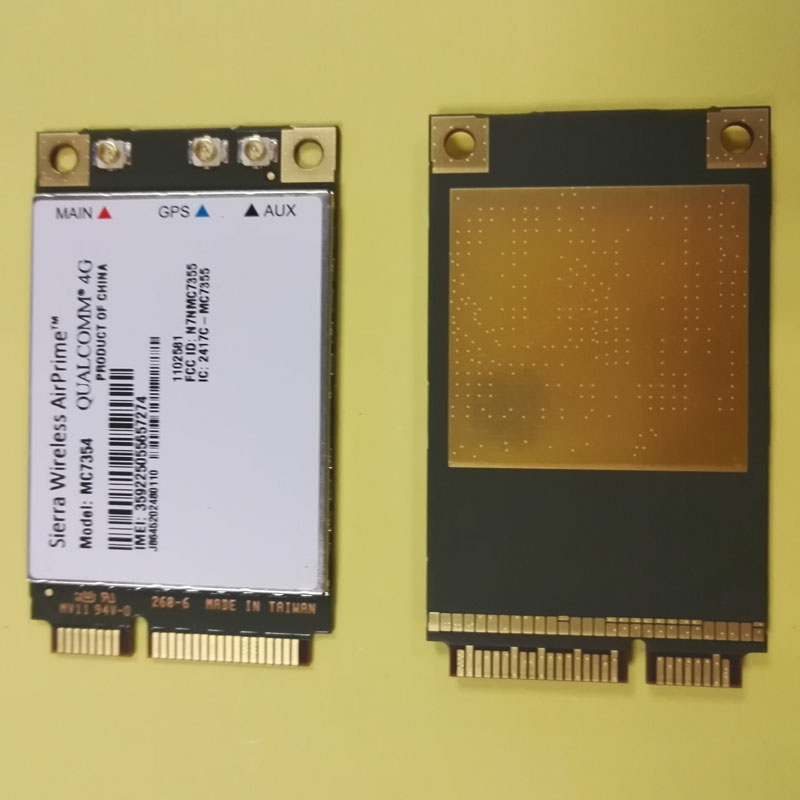

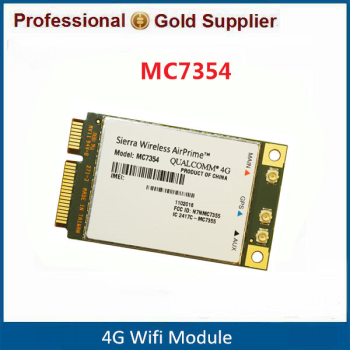

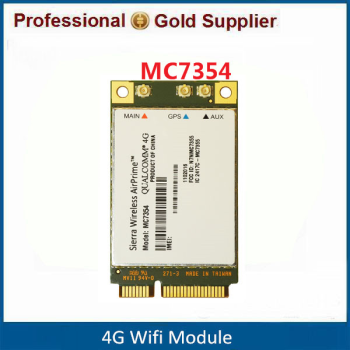

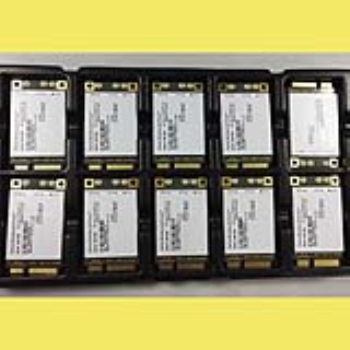

MC7354,4G-LTE Mini PCIe Module with GPS+Glonass for North America/Multi operator

MC7354 is a second generation 4G-LTE module with or without voice and an integrated GPS+Glonass receiver primarily for North America/AT&T, Verizon, Sprint. Fall back to3GHSPA+/DC-HSPA+, CDMA EVDO Rev A and2GGSM/GPRS/EDGE, CDMA 1xRTT. Supported frequency bands:4G-LTE 700/850/1700AWS/1900,3G800/850/1700AWS/1900/2100,2G850/900/1800/1900, CDMA EVDO 800/1700/1900 and CDMA 1xRTT 800/1900. Multi operator support through host based image switching. Form factor: PCIe Mini Card F1, 51x30 mm.

Ideal for industrial M2Mand mobile computing solutions, AirPrime® MC embedded modules deliver high speed connectivity, with a wide selection of advanced air interfaces, including LTE frequencies. Based on the PCI Express Mini Card standard with a USB interface, the MC Series modules offer an easy upgrade path to new network technologies and global access to high speed networks.

Features

Air interface:4G-LTE MIMO,3G-HSPA+/DC-HSPA+ Rx Diversity,3G-CDMA EVDO Rev A,2G-GSM/GPRS/EDGE,2G-CDMA 1xRTT, GPS+Glonass

4Gbands: 700(B13,B17)/850/1700AWS/1900(B2,B25) MHz

3G-HSPA+ bands: 800/850/900/1700AWS/1900/2100 MHz

3G-EVDO bands: 800/1700/1900

2Gbands: 850/900/1800/1900 MHz

2G1xRTT bands: 800/1900

Multi operator support through host based image switching.

Peak Data rate: DL 100 Mbps, UL 50 Mbps

GNSS (GPS+Glonass): Qualcomm

Form factor: PCIe Mini Card F1, 51x30x2.7 mm

Supply Voltage: 3.3 V nominal

Operating Temperature:-40°Cto +85°C

Control, software and features

Control options: AT Commands, GOBI API, QMI SDK

Drivers: Android, Linux, Windows

Connectors

System connector: 52 position Mini PCIe

Antenna RF connector: 3x U.FL (Main RF, Aux RF, GPS with DC bias)

Interfaces

USB 2.0 High Speed

Main radio disable

GPIO: 4

Flash LED output

SIM interface: 1.8/3V

Audio (optional, specific SKU)

Digital audio: PCM/I2S

4G: VoLTE (to be released)

3G/2G: Circuit Switched Fall Back (CSFB voice)

Echo cancellation

Noise reduction

DTMF
