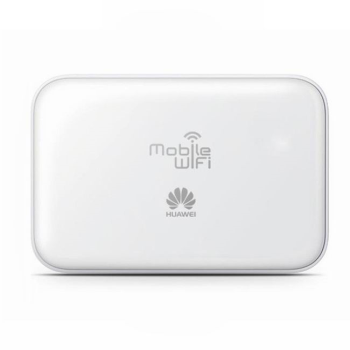

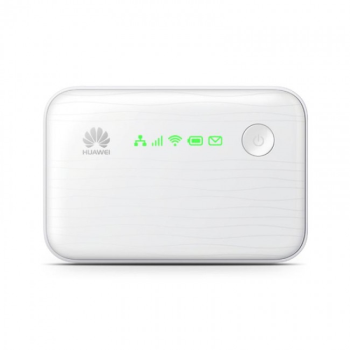

Huawei E5730s Power Bank 3G Pocket Router

Huawei E5730s is a new mobile pocket WiFi router that has Ethernet port, which can connect Ethernet cable to support multiple WiFi-enabled terminals to access internet. Huawei E5730s also has SIM card slot to change3Gsignal to WiFi signal. The two working modes makes E5730s working all over the world. Huawei E5730s is also a mobile power bank of 5200mAh. It can work for 16 hours and standby time is around 500 hours.

Huawei E5730s Technical Specifications:

* Network mode: DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

* Device Type:3GWireless Router

* WLAN: IEEE 802.11b/g/n

* DC-HSPA+/HSPA+/HSPA/UMTS: 2100/900MHz

* EDGE/GPRS/GSM: 1900/1800/900/850MHz

*3GSpeed up to 42Mbps

* WiFi speed up to 150Mbps

* WLAN: 2400MHz～2483.5MHz

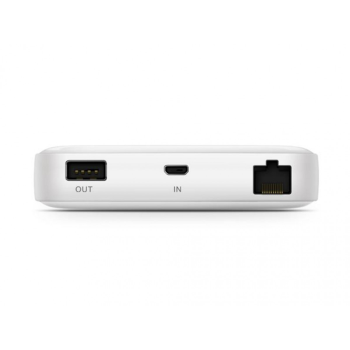

* Mircro USB interface x 1

* Standard A USB interface x 1

* RJ45 Ethernet port x 1

* Standard 6 PIN SIM card

* Built-in UMTS/GSM/WLAN antenna

* Power and Reset button

* Plug and play

* Other features: DHCP, Cone NET, Symmetric NAT, APN, LAN IP filter, DMZ,

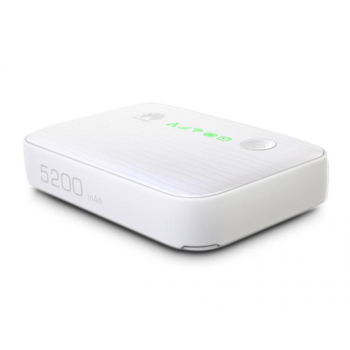

*Battery: 3.7v, 5200mAh

* Dimensions:99.0mm×66.3mm×22.5mm

* Weight:170g

Huawei E5730s User Guide:

1. How to setup the3Gconnection for HUAWEI E5730S?

2. How to setup the Ethernet Connection for HUAWEI E5730S?
