Embedded Modules

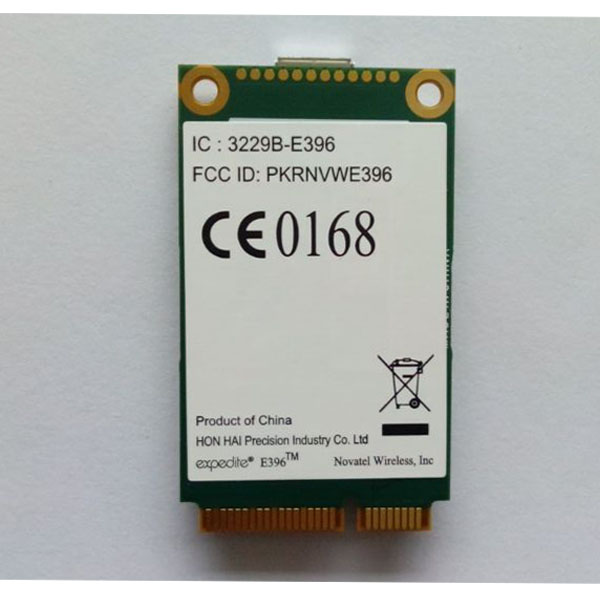

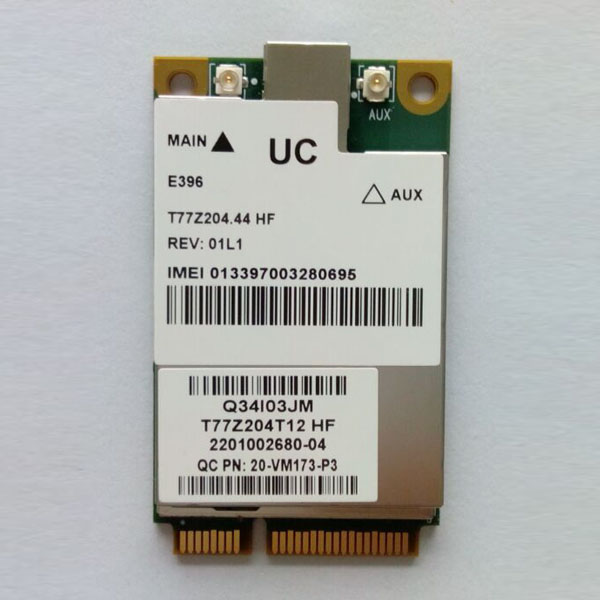

Novatel Wireless Expedite E396 PCI Express Mini Card is an embedded module that can be integrated into laptops and other devices for 3G mobile data applications. Powered by the Qualcomm MDM6600 chipset, the Expedite E396 offers high performance to the user on HSPA+ and EVDO Rev A bands with global fallback to 2G. With the network selection feature, now OEMs only need to stock a single SKU.

Novatel Expedite E396 could provide download speed up to 14.4Mbps and the Expedite E396 3G PCI Express mini card covers HSPA+ & CDMA networks with high efficiency and less power consumption.

Novatel E396 Technical Specifications:

Technology Bands:

- HSPA+/UMTS 850/900/AWS/1900/2100 MHz

- EGPRS 850/900/1800/1900 MHz

- CDMA 800/1900 MHz

Data Speeds:

- 14.4 Mbps Download (HSPA+)

- 5.76 Mbps Upload (HSPA+)

- 3.1 Mbps Download (CDMA)

- 1.8 Mbps Download (CDMA)

Advanced Technologies

- Receiver Equalization - improves performance in noisy and highly mobile environments

- Receiver Diversity - improves performance at cell edges and in buildings

- GOBI QDL for carrier selection

Dimensions and Weight

- PCI Express Mini Card Form Factor - F2

- Single-sided design

- Size - 51 x 30 x 3.15 mm (H x W x D)

- Weight - 10 g

Host Interface

- PCI Express Mini Card

- Standard Interface

- USB

- LED control

- Antenna - 50 0hm compatible

Standards/Approvals/Certifications

- 3GPP (HSPA+)

- 3GPP Release 99 (GSM/GPRS)

- Support for GpsOne

- CCF57

- GCF

- FCC

- IC

- CE

- PTCRB

- Microsoft WHQL

- NDIS driver support

- RoHS compliant

- Halogen Free

- AT&T, Verizon, Sprint, Telefonica, Vodafone, Orange, TIM, T-Mobile (EMEA)
