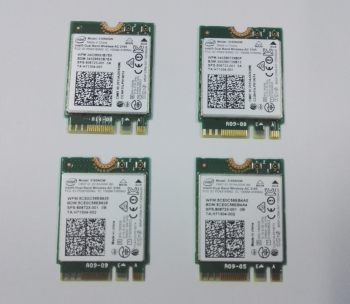

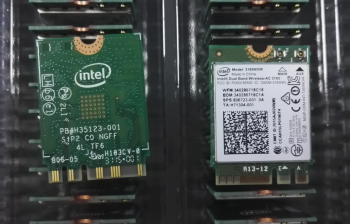

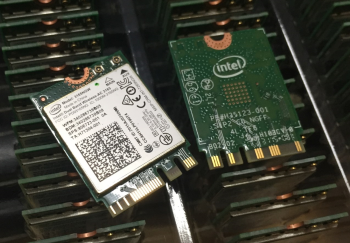

Wifi Module

Specification:

Brand: Intel

Model: 3165NGW

D/PN: MHK36,0MHK36,CN-0MHK36

Interface: NGFF

Frequency Band: 2.4Ghz/5Ghz

Max Speed: 433Mbps

Bluetooth: Bluetooth 4.0

IEEE WLAN Standard: 802.11 ac/a/b/g/n

Condition: New, Original

Operating Systems

Microsoft Windows 7*, Microsoft Windows 8.1*, Microsoft Windows 10*, Linux* (most features not available on Linux)

Wi-Fi Alliance

Wi-Fi CERTIFIED* for 802.11ac, Wi-Fi CERTIFIED* a/b/g, Wi-Fi CERTIFIED* n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected Management Frames

Wi-Fi Direct* for peer to peer device connections

Wi-Fi Miracast Source

IEEE WLAN Standard

IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w

Roaming5

Supports seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g, 802.11a/b/g/n, and 802.11ac)

Bluetooth®

Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 4.0, 4.1,4.2 (BLE)

Authentication

WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA

Note: This wifi card could not work with any HP or IBM/Thinkpad/Lenovo version laptops.
