Module

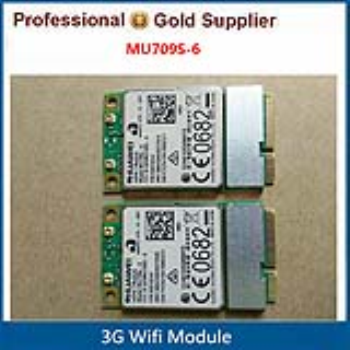

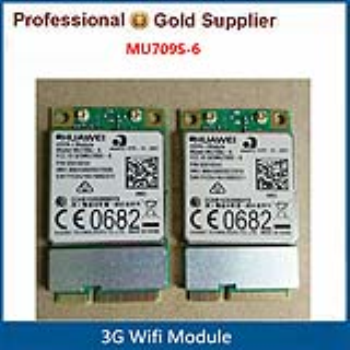

Huawei MU709s-6 HSPA+ module is a new 3G module in small size. It has two form factors: LGA and Mini PCIe interface, which are especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

Huawei MU709 family supports 21.6Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+ networks. The module also includes enhanced features like embedded TCP/IP stack, SMTP, FOTA, Jamming Detection, Netscan, CMUX, SSL, eCall, Huawei enhanced AT commands, cell lock, network monitoring, DTMF decoder, baud rate adaptation, multi PDP, SIM swap, .etc.

Huawei MU709s-6 Technical Specifications:

* Form Factor: 145-pin LGA and Mini-PCIe

* Supported Networks:

- HSPA+/UMTS Tri-band 850/1900/2100 MHz

- GSM/GPRS quad-band 850/900/1800/1900 MHz

* Data rates: Downlink:21.6 Mbps, Uplink: 5.76 Mbps

* Interface:

- 2 Antenna connectors

- 1*8 UART & 1*2 UART(LGA)

- JTAG(LGA)

- GPIOs(LGA)

- PCIe interface

- USB 2.0 High speed

- PCM Voice

- SIM Interface (1.8V/3.0V)

- Power supply

- Reset

* Power Supply

- LGA: 3.3 V to 4.2 V (typical: 3.8 V)

- Mini PCIe: 3.0 V to 3.6 V (typical: 3.3 V)

* Voice: PCM Voice

* Temp Range: -40℃ to 85℃

* Special Features

- FOTA

- Firmware update via USB

- STK

- Jamming Detection

- Netscan

- CMUX

- SSL

- eCall

* Operating System: Linux, Android

* Approvals:

- CE

- FCC

- GCF

- PTCRB

- A-Tick

- ANATEL

- RoHS

- WEEE

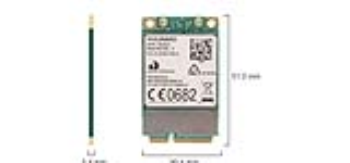

* Dimensions:

- LGA: 30 x 30 x 2.3mm

- Mini PCIe: 30.4 x 51 x 3.4 mm

* Weight:

- LGA: 5g

- Mini PCIe: 12g
