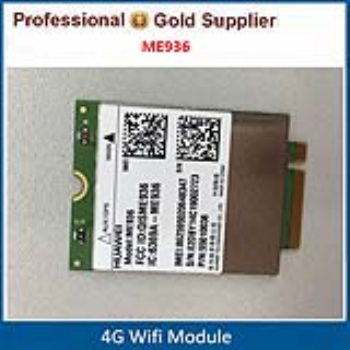

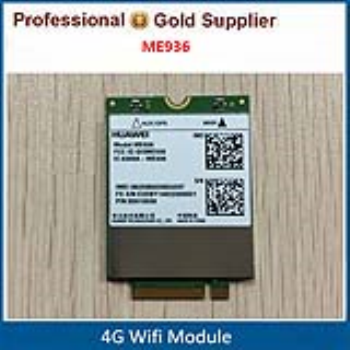

Wifi Module

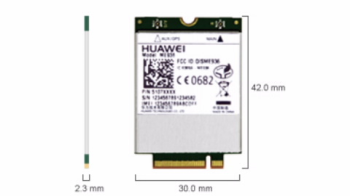

Huawei ME936 Module Technical Specifications:

Form Factor: M.2

Band

* LTE(FDD) B1/B2/B3/B4/B5/B7/B8/B13/B17/B20

* Penta-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B4/B5/B8/B9

* Quad-band EDGE/GPRS/GSM 1900/1800/900/850 MHz

Data Transfer Rate

* LTE FDD: UL(50Mbps)/DL (100Mbps) @ Bandwidth 20M (CAT3)

* DC-HSPA+: UL(11Mbps)/DL (42Mbps)

* WCDMA PS: UL (384 kbps)/ DL (384 kbps)

Interface

* Antenna interfaces x 2

* M.2 Socket 2

* USB 2.0 interface high speed

* Power supply

* UICC interface

 Temp Range

* Normal operation: -10°C to +55°C

* Extended operation: -20°C to +70°C

* Storage: -40°C to +85°C

GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass

OS: Windows 7/8/Blue / Android 4.0 or above

Special Features

* SIM Hotswap

* IPV6

* BodySAR

* Ultrabook feature support(ACT, WiFi Offload , DPTF)

* USB LPM (Link Power Management)

* Tunable Antenna

* Supporting MO and MT

* Supporting formats of PDU

* Point-to-point and cell broadcast

Approvals

* FCC

* GCF

* PTCRB

* RoHS/ Halogen free

* Operator TA: AT&T(Plan), Vodafone(Plan)
