Home > Huawei ME909s-821 4G LTE Module
  • huawei E5377 mobile hotspot
  • huawei E5776

4G LTE

  • Product Name:

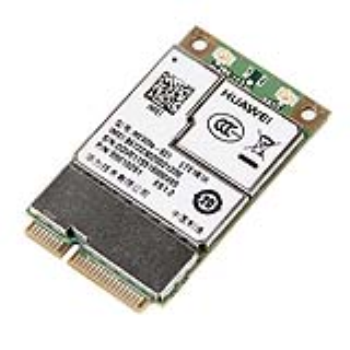

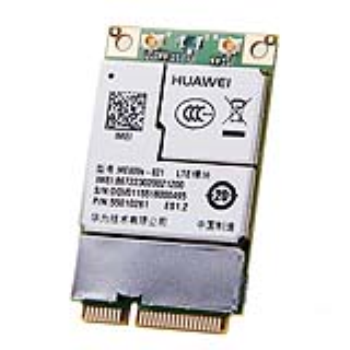

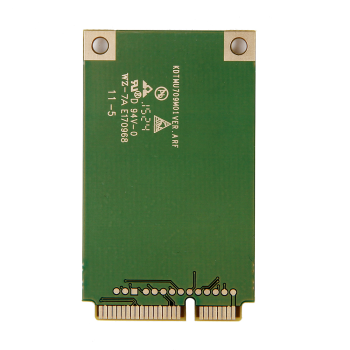

    Huawei ME909s-821 4G LTE Module

  • Model No:

    ME909s-821

  • Unit Price:

    $29/piece

  • Mimimum Order Quantity:

    1

  • Payment Term:

    T/T,Westunion,Paypal,Moneygram

  • Delivery Lead Time:

    3 Days after Payment

  • Place Of Origin:

    China
Contact Now
Share
Detailed Product Description

Huawei ME909s-821 Technical Specifications:



* Form Factor: 145 pins LGA interface and Mini-PCIe



* 4G LTE (FDD): B1,B3,B8



* 4G LTE (TDD): B38, B39,B40,B41



* DC-HSPA+/HSPA+/HSPA/UMTS : B1, B5, B8,B9



* TD-SCDMA: B34, B39



* EDGE/GPRS/GSM: TD-SCDMA: B34, B39



* LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps



* LTE TDD: Downlink:112 Mbps, Uplink: 10 Mbps



* DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps



* Power Supply: Mini PCIe: 3.2 V to 4.2 V (typical: 3.8 V)



* Temp Range: -40℃ to 85℃



* Voice: PCM Voice and DTMF



* Special Features

- CDC-ECM

- FOTA

- Firmware Update via USB

- Embedded UDP/TCP/FTP(s)/HTTP(s) stack

- High-speed UART

- CMUX

- Sleep mode



* Operating System: Linux, Android, WinCE, Windows 8/10



* Approvals: CCC, NAL, SRRC, RoHS & WEEE Compliant



* Dimensions:



- Mini PCIe: 30.4 x 51 x 3.57 mm



- LGA: 30 x 30 x 2.57 mm
