4G LTE

  • Product Name:

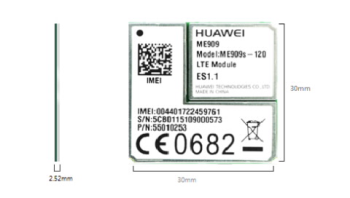

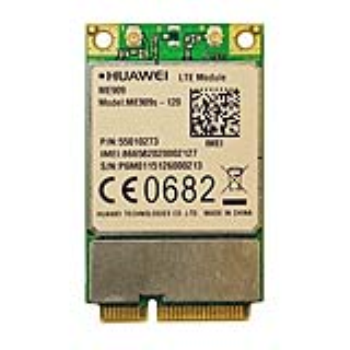

    Huawei ME909s-120 Mini PCIe LTE Module
  • Model No:

    ME909s-120
  • Unit Price:

    $29/piece
  • Mimimum Order Quantity:

    1
  • Payment Term:

    T/T,Westunion,Paypal,Moneygram
  • Delivery Lead Time:

    3 Days after Payment
  • Place Of Origin:

    China
Contact Now
Detailed Product Description

Huawei ME909s-120 Technical Specifications:



* Form factor: Mini-PCIe



* 4G LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20



* DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8



* EDGE/GPRS/GSM: 850/900/1800/1900 MHz



* LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)



* DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps



* Power Supply: 3.2 V to 4.2 V ( 3.8 V recommended)



* Temp Range: -40to 85



* Voice: PCM Voice and DTMF



* Special Features

- CDC-ECM

- FOTA

- Firmware Update via USB

- Embedded UDP/TCP/FTP(s)/HTTP(s) stack

- High-speed UART

- CMUX

- Sleep mode



* Operating System: Linux, Android, WinCE, Windows 8/10
