Huawei ME209, also named ME209u-526, is a new high-quality designed LTE module in small size. It has two form factors, LGA and Mini PCIe, which especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. Huawei ME209u-526 support peak download speed to 100Mbps and upload speed to 50Mbps. Huawei ME209u-526 supports 4G LTE Band 4 and Band 13. This band is common in North Amerian areas.

Huawei ME209u-526 Technical specifications:

* Two Form Factors: 145-pin LGA and Mini-PCIe

* LTE Bands: FDD Band 4 and Band 13

* LTE FDD: Downlink:100 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT3)

* Power supply:

- LGA: 3.3 V to 4.2 V (typical: 3.8 V)

- Mini PCIe: 3.0 V to 3.6 V (3.3 V recommended)

* Temp Range

- Normal Operation: -30℃ to 70℃

- Extended Operation: -40℃ to 75℃

* GPS/Glonass: N/A

* Antenna interface: yes

* USB 2.0 High speed

* PCM Voice Interface: yes

* SIM card interface: yes

* Power supply and Reset interface: yes

* Special Features

- CDC-ECM

- Embedded UDP/TCP/IP/FTP/HTTP stack

- FOTA

- Firmware Update via USB

* Operating System : Linux, Android

* Size:

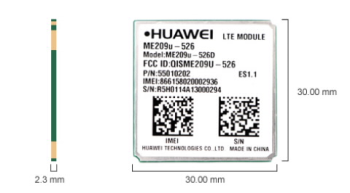

- LGA: 30 X 30 X 2.3mm

- Mini PCIe: 51 x 30.4 x 3.4mm
