Home > Huawei ME206v-561 LTE M.2 NGFF Module
  • huawei E5878 router
  • Huawei AF23
  • NXT CEL-FI D32
  • Micro SIM test card for Anritsu MT8820C


  • Product Name:

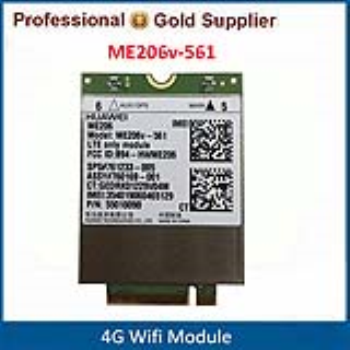

    Huawei ME206v-561 LTE M.2 NGFF Module
  • Model No:

  • Unit Price:

  • Mimimum Order Quantity:

  • Payment Term:

  • Delivery Lead Time:

    3 Days after Payment
  • Place Of Origin:

Contact Now
Detailed Product Description

Huawei ME206 LTE M.2 NGFF Module


Huawei ME206 is a new 4G LTE module for North American and Global LTE network coverage. It could support only LTE network on band 2/4/5/13/17. Up to 100mbps donwload speed and 50Mbps for upload speed could be achieved. It has low power consumption, support for Global Navigation Satellite System (GNSS, GLONASS) and North American carrier certifications.



Huawei ME206 LTE Module Technical Specifications:

* Form Factor: 75-pin M.2/NGFF

* Bands: LTE FDD: B2/B4/B5/B13/B17

* FDD LTE: Downlink:100 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT3)

* Power supply: 3.135 V to 4.4 V (typical: 3.3 V)

* Voice: N/A

* Temperature: Normal Operation: -10to 55, Extended Operation: -20to 70


* Interface:


- Antenna interface

- M.2 Socket 2

- USB 2.0 interface high speed

- Power supply

- UICC interface
