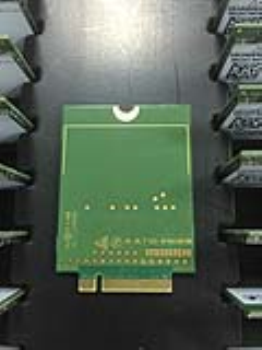

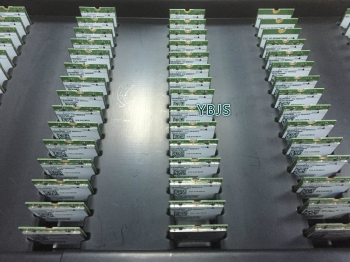

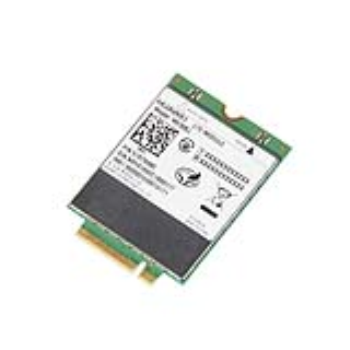

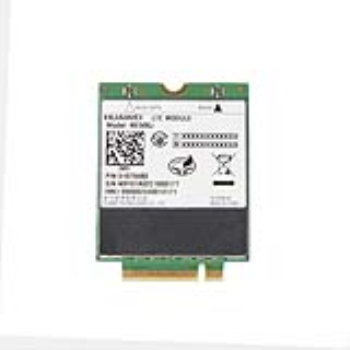

Huawei ME906J LTE Module Specifications:

 Bands:

* LTE (FDD) B1/B11/B18/B19/B21

* CDMA/EVDO BC0/BC6

* Quad-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B6/B19

Data Transfer Rate:

* 1x: UL (153.6 kbps)/ DL (153.6 kbps)

* EVDO Rev.B: UL (5.4 Mbps)/ DL (14.7 Mbps)

* WCDMA PS: UL (384 kbps)/ DL (384 kbps)

* DC-HSPA+: UL (5.76 Mbps)/ DL (42 Mbps)

* LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3)

Interface

* l Antenna interfaces x 2

* l M.2 Socket 2

* USB 2.0 interface high speed

* Power supply

* UICC interface

Power Supply

* Supply voltage range:3.135V~4.4V (3.3 V recommended)

Temperature Range

* Normal operation: -10°C to +55°C

* Extended operation: -20°C to +70°C

* Storage: -40°C to +85°C

GPS/Glonass

* GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass

Special Features

* SIM Hotswap

* IPV6

* BodySAR

* Ultrabook feature support(ACT, WiFi Offload , DPTF)

* Tunable Antenna

* Supporting MO and MT

* Supporting formats of PDU

* Point-to-point and cell broadcast

Operating System

* OS: Windows 7/Windows 8/Android 4.0 or above

Approvals

* GCF

* TELEC/JATE

* ROHS/Halogen free

* Operator TA: KDDI, NTT DOCOMO
