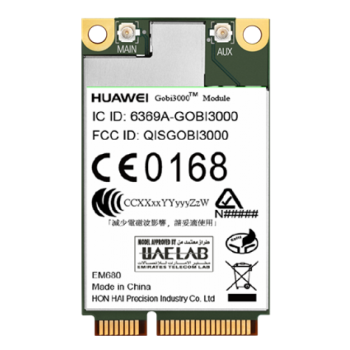

HUAWEI EM680 3G Mini PCI Express Module

HUAWEI EM680 3Gmodule, also named Gobi3000, is a3G/GPS/EVDO/HSPA+ Mini PCI Express module to support UMTS and GSM networks. The EM680 Module could support download speed up to 14.4Mbps and upload to 5.76Mbps. HUAWEI EM680 Module is suitable for all kinds of porjects, including M2Mand other embedded applications.

HUAWEI EM680 3GModule Specifications:

* Chipset: MDM6600

* HSPA+/HSUPA/HSDPA/UMTS: 800/850/900/1900/AWS/2100MHz

* GSM/GPRS/EDGE: 850/900/1800/1900 MHz

* EVDO Rev.A 800/1900MHz

* GPRS/EDGE: Multi-slot Class 10, Class B

* Operating humidity range: 10%~ 90%

* Dimensions: 30.0 x 51.0 x3.15mm

* Weight: <10g

Speed:
* GSM CS: UL 9.6kbps/DL 9.6kbps

* GPRS/EDGE: Multi-slot Class 12, Class B

* WCDMA CS: UL 64kbps/DL 64kbps

* WCDMA PS: UL 384kbps/DL 384kbps

* HSPA: UL 5.76Mbps/DL 14.4Mbps

* EVDO Rev.A: UL 1.8Mbps /DL 3.1Mbps

Max. transmitter power
- WCDMA/HSPA/HSPA 2100/1900/900/800/AWS/850MHz: +24dBm (Power Class 3)

- GSM/GPRS850M/900MHz
