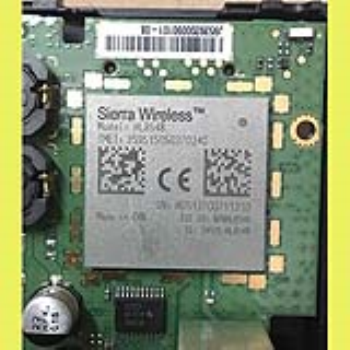

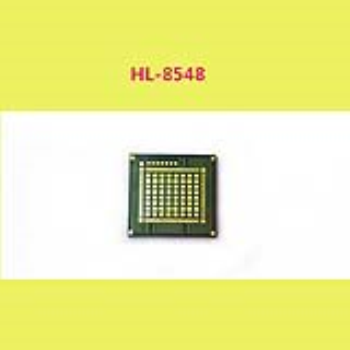

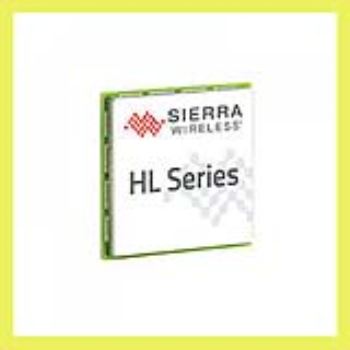

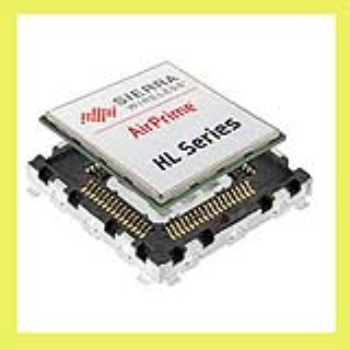

Sierra Wireless HL-5848

  • Product Name:

    Sierra Wireless HL-5848
  • Model No:

    Sierra HL8548
  • Unit Price:

    USD29
  • Mimimum Order Quantity:

    1picese
  • Payment Term:

    T/T, Western Union, MoneyGram, PAYPAL
  • Delivery Lead Time:

    3-7days after payment
  • Place Of Origin:

    shenzhen
Contact Now
Detailed Product Description

Technical specifications

FORM FACTOR

LGA

AIR INTERFACE

GSM/GPRS/EDGE/HSD/PA/HSUPA

FREQUENCY BANDS

HSPA: B2/B5 B1/B2/B5/B6/B8
EDGE: 850/900/1800/1900
GSM/GPRS: 850/900/1800/1900

APPROVALS

Regulatory: CE, FCC, PTCRB, GCF, IC, Anatel, CCC
Carrier : AT&T, Vodafone, NTT...

CURRENT CONSUMPTION

Power Supply for Extended Battery LIfe : 2.8V supports
Alarm (leakage only): 40µA
Standby and Idle (Sleep):1.2 mA
GSM/GPRS: 360 mA
HSxPA max: 560 mA



AUDIO

Digital Audio : available
Codec : HR, FR, EFR, AMR
Echo Cancellation & Noise Reduction : available
DTMF available

INTERFACES

UART : 8 lines
USB : available
ADC: 2
GPIO: 8
Flash LED Output : available
PWM (Buzzer): 1
Tx Burst Indicator: available
SIM interface 1.8V/3V : 1 SIM DSDS support

LOCATION SOLUTION

GPS  Glonass Sirf V

CLOUD SERVICES

FOTA through AVMS

INTERNET SERVICES

TCP+UDP+FTP+HTTP+HTTPS

DRIVERS

USB drivers for Linux, Android, Win CE,

Win7, Win XP

DEVICE DIMENSIONS

22x23x2.5 mm

TEMPERATURE RANGE

- 40°C / + 85°C
