Home > Alcatel HH70 Cat7 LTE Router
  • Sierra MC8704 Module
  • WCDMA test card for CMU200


  • Product Name:

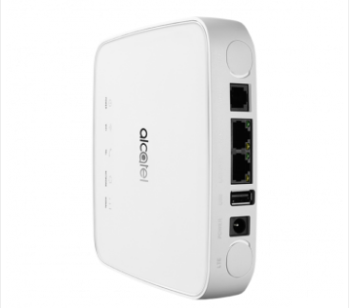

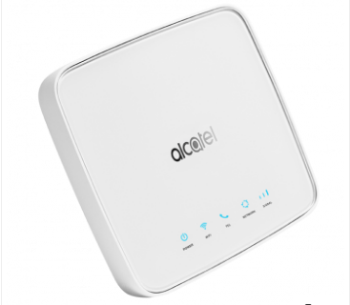

    Alcatel HH70 Cat7 LTE Router
  • Model No:

  • Unit Price:

  • Mimimum Order Quantity:

  • Payment Term:

  • Delivery Lead Time:

    3 Days after Payment
  • Place Of Origin:

Contact Now
Detailed Product Description

Alcatel Linkhub HH70 is a new LTE Cat7 home station which has two Ethernet ports(one for LAN and the other for LAN/WAN), one USB port and one RJ11 telephone port. With the support of LTE Cat7, Alcatel Linkhub HH70 could achieve download speed up to 300Mbps and upload speed to 100Mbps. It can provide strong WiFi coverage of 250 meters.



* 4G LTE WiFi Router with Ethernet port


* Platform/chipset: Qualcomm MDM9240-1


* Category: LTE Cat7


* Support 4G LTE Band: FDD LTE B1/3/7/8/20 & TDD B38/B40


* Support 3G UMTS B1/3/8 * 2G GSM: 850/900/1800/1900MHz


* LTE download speed up to 300Mbps, upload speed up to 100Mbps


* WLAN: Wi-Fi 802.11 a/b/g/n/ac, dual-band(2.4GHz & 5GHz), 2 x 2 MIMO


* Support maximum up to 64 WiFi users


* Memory: 4GB NAND Flash + 2GB LPDDR2


* Battery: No


* Display: LED lights (Power, Signal, WiFi, TEL, Network)


* Interfaces:


- 4FF SIM card slot

- 2x 1000Mbps RJ45 port (WAN/LAN)

- 1x RJ11 port

- USB 2.0A for external disk connection and printer

- AC/DC charger

- External antenna connectors (2x)

- 1x Power key

- 1x WPS key

- 1x Reset hole



* Browser: IE, Safari, Firefox, Opera, Chrome


* Languages: English, French, Italian, Spanish (for the generic version.)


* Configuration: Web UI (Mobile and PC versions) APP (IOS 5.0 ~9.x and Android 4.2)


* OS: Windows10, 8/7, vista, XP, Mac OS X(10.6.X-10.10.X-)


* Certifications: CE, RoHS, REACH, WEEE, WiFi alliance


* Dimensions: 146 x 146 x 32 mm


* Weight: 405g
