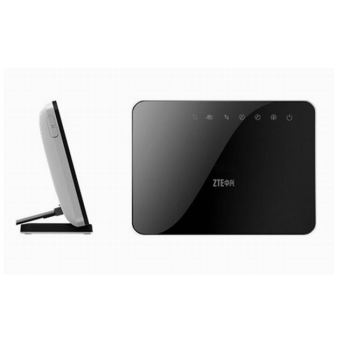

ZTE MF29T

ZTE MF29T4GTD-LTE CPE Router

ZTE MF29T4GRouter is a new4GTD-LTE CPE which could support TD-LTE Band 38 and Band 40. ZTE MF29T4GWireless Gateway can't work with FDD networks. But MF29T4GRouter could work on3GUMTS 900/2100MHz and2GGSM/GPRS/EDGE. The download speed on4GLTE network could reach 68Mbps and upload speed could reach 50mbps.

The 4G router ZTE MF29T operates on the LTE/HSUPA/HSDPA/WCDMA network and supports voice and data service. There are 4 * RJ45, 2 * RJ11 and 1 * USB port in ZTE MF29T CPE Router. ZTE MF29T is very similar to HUAWEI B593s-824GLTE CPE, but B593s-82 LTE CPE could only support4GTDD LTE Band 2300/2600MHz, it can't support3Gor2Gnetworks.

Technical Specifications:

* Platform: Qualcomm MSM9200

* LTE TDD: 2600 MHz (Band 38) and 2300 MHz (Band 40)

* UMTS: 2100 MHz (Band 1) and 900 MHz (Band 8)

* Bandwidth:10M,20M

* MCS: DL 64QAM/UL 16QAM

* Power Input: 100 V~240 V (AC), 50 Hz~60 Hz

* Power Output: +12 V±10% (DC),1.5 A

* Data Service

- HSDPA: DL 3.6 Mb/s (Category 6)

- DL 7.2 Mb/s (Category 8)

- DL 14.4 Mb/s (Category 10)

- DL 1.8 Mb/s (Category 12)

- DL 21 Mb/s (Category 14)

- HSUPA UL 2 Mb/s (Category 5)

- HSUPA UL 5.76 Mb/s (Category 6)

* LTE TDD Data rates

- DL 68 Mb/s (Category 3)

- UL 17 Mb/s (Category 3)

* Wi-Fi 802.11 b/g/n 2x2MIMO, Wi-Fi 300Mbps

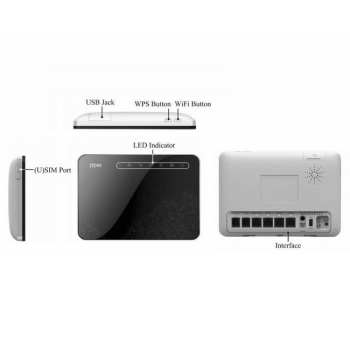

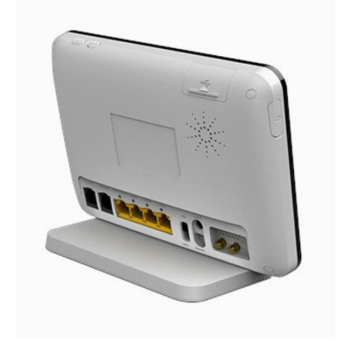

* Interface: 4*RJ 45+2*RJ11+1*USB

* RSupport PSTN &3GCS voice

* Dimensions (W×H×D):202 mm×160 mm×30.5 mm
