ZTE MF23

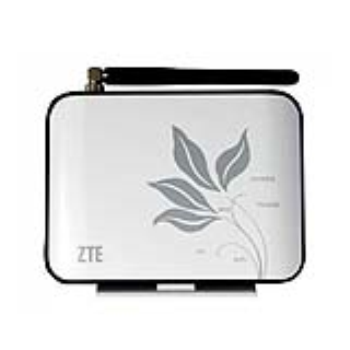

ZTE MF23 3G Wireless Home Router

ZTE MF23 3G Wireless Home Router is one of the new home router from ZTE to work with3.5Gmobile network. ZTE MF23 supports HSDPA download speed at 7.2Mbps and upload speed at 5.76Mbps. With built-in Wi-Fi antenna, MF23 has the ability to use an external antenna (SMA). The router also allows you to connect a regular phone to make calls on3Gor GSM.

The ZTE MF23 router does not require any drivers, and it supports all operating systems with Ethernet LAN capability, such as Windows 2000, XP,Vista, MAC OS X and Linux. The router supports two computers surfing on internet using Ethernet cable at the same time.

1. POWER Switch: Turn the router ON or OFF.

2. POWER Socket: Connection to the external power supply.

3. WPS: WPS button is used to start Wi-Fi Protected Setup authentication process.

4. Phone: Standard RJ11 connector for Telephone.

5. LAN: Ethernet connections to computer.

6. SIM: (U)SIM port for inserting (U)SIM card.

Specifications:

*3Gstandard HSDPA / WCDMA 850/900/1900/2100MHz

* Standard2GEDGE / GPRS / GSM 850/900/1800/1900MHz

* Download speed up to 7.2 Mbps

* Speed of outgoing traffic to 5.76 Mbps

* Supports Wi-Fi 802.11b/g

* Standard network port RJ45 (1 × 10/100Base)

* Port PSTN RJ 11 (1 × POTS)

* Easy management via WEB-interface

* Built-in protection (firewall, filtering by MAC-address)

* Dimensions138mm×102mm×27mm

* Weight:400 g
