  • Product Name:

    ZTE ME3760 Mini PCIe 4G LTE Wireless Module
  • Model No:

    ME3760
  • Unit Price:

    negotiated
  • Mimimum Order Quantity:

    1
  • Payment Term:

    TT / Western Union / paypal / moeygram / Ria
  • Delivery Lead Time:

    within 2-3 days after received the payment
  • Place Of Origin:

    China
Contact Now
Detailed Product Description

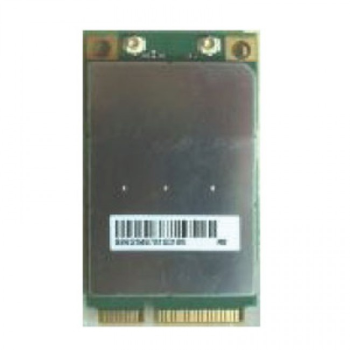

ZTE ME3760 Mini PCIe 4G LTE Wireless Module


ZTE ME3760 is the new4GLTE Module from ZTE, it has Mini PCI Express interface and is widely used in CE products such as Ultrabook, Notebook, Tablet and CPE etc..The4GLTE Module ME3760 ZTE could support4GLTE FDD and TD-LTE network, and TD-SCDMA & HSPA networks are backup. The peak download speed on LTE could reach 100Mbps and upload speed could reach 50mbps.


Technical Specifications:
* Network: TDD-LTE/FDD-LTE/TD-SCDMA HSPA
* Frequency band
- TDD-LTE 1900MHz(Band39)/2300MHz(Band40)/2600MHz(Band38)
- FDD-LTE 2600MHz(Band 7)
- TD-SCDMA HSPA1900/2100MHz

* Data rate: DL 100Mbps/UL 50Mbps

* Interface: Mini PCIE 52Pin

* Function: Data

* Commands: Standard AT commands/ZTE exclusive commands

* Certifications: TBD

* Highlights: Support dual antenna diversity recption

* Support TDD and FDD dual mode

* Dimensions: 51*30*5.05mm

* Temperature:-10℃to +60℃

* Voltage: 3.0V~3.6V/typical 3.3V

* USB interface USB 2.0

* OS Support: Windows XP/Vista/7, Linux2.6.20 and later, WinCE6.0
