Sierra Wireless module

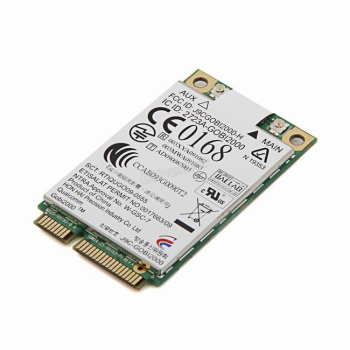

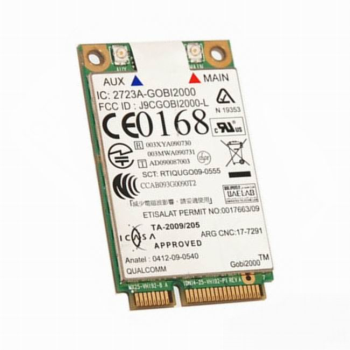

Sierra Wireless gobi2000 qualcomm 3g module

Interfaces:

High-speed USB 2.0

52-pin edge connector

LED current sinkLED

Primary and diversity antenna,U.FLcoax

UICC compliant to GSM TS11.11, GSM 11.12 and ISO / IEC 7816-3 standards

Module Firmware:

CDMA2000, EV - DO firmware binary images

HSPA / WCDMA / GSM Business / GPRS / EDGE firmware binary images

Digitally signed image authenticated at boot

Hybrid Mode Alternative (HMA)-compliant

APIs and SDK:

Sample connection manager Connection Manager Sample

Qualcomm downloader (QDLService) binary application Qualcomm Downloader (QDLService) binary application

CM-API binary library Model: CM – API

AT command interface

Support equipment: Qualcomm Gobi un2400 and un2420 Global Mobile Internet

Operating System:

Microsoft Windows 7
Microsoft Windows 7 (64-bit)
Microsoft Windows Vista
Microsoft Windows Vista (64-bit)
Microsoft Windows XP

Language: global

Prerequisite:

1.You must install the HP Wireless Assistant.
2.Install this program must be installed before the HP Multi-WWAN Driver Installer.
3.Must open the WWAN (for HP System Software Manager).

Installation:
1. Download the file to your local hard disk.
2. Run the downloaded file and follow the onscreen prompts.

Dimensions and Weight:

Mini Card form - version1.2 F1 type (full-size) mini-card

Size:51 mm×30mm×5mm

Weight:11.5 g
