Product Name:
Sierra Wireless Airprime MC7304 4g wifi moduleModel No:
MC7304Unit Price:
130USDMimimum Order Quantity:
1Payment Term:
TT/WEST UNIONDelivery Lead Time:
within 2-3 days after received the paymentPlace Of Origin:
China

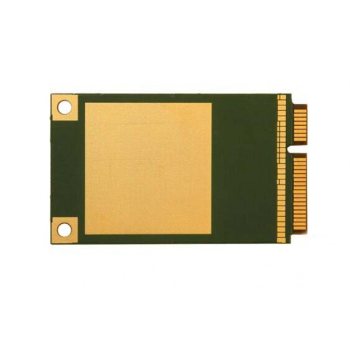

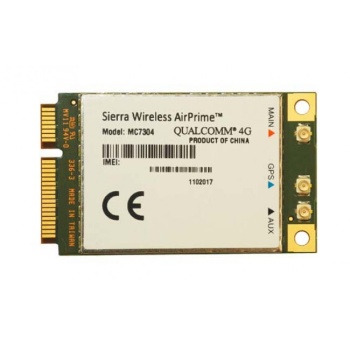

Sierra
AirPrime MC7304 is the new4Gmodule from Sierra Wireless that support4GLTE Band1/3/7/8/20. The4Gmodule MC7304 provides LTE, DC-HSPA+, HSPA+, HSDPA,
HSUPA, WCDMA, GSM, GPRS, EDGE, and GNSS connectivity for notebook, ultrabook,
and tablet computers over several radio frequency bands. The device also
supports2G/3Groaming, subject to carrier provisioning.
AirPrime
MC7304 module allows developers to take advantage of the latest generation of
high-speed mobile networks, delivering up to 100Mbps download speeds and 50Mbps
upload speeds over LTE with fall-back to all3G/HSPA+ networks. The module includes enhanced
location capabilities using A-GPS, GPS Xtra, and Glonass. It also provides
support for Linux and Windows 7 and Windows 8. The MC7304 module has been
optimized for low power consumption, enabling longer battery life in
applications. Sierra MC7304 is very similar to Airprime MC7305.
Sierra AirPrime MC7304 Technical
Specificationis:
*
Model No: MC7304
*
Category:4GModule
*
Manufacturer: Sierra Wireless
*
Chipset: Qualcomm MDM 9215
*
Form Factor: PCIe M.2
*
Pins: 52-pin
*
Technologies: LTE,HSPA+,UMTS,GPRS(Class 12),GSM,EDGE,HSDPA,
*
Frequency bands
-
LTE: Band1/3/7/8/20 2600/1800/2100/900/800 MHz
-
WCDMA: 850/900/1900/2100 MHz
-
GPRS/EDGE: 850/900/1800/1900 MHz
-
GPS: 1575.42MHz
-
GLONASS: 1602MHz
*
Data rates:
-
Downlink 100Mbps (20MHz bandwidth), 50mbps (10MHz bandwidth)
-
uplink 50Mbps (20MHz bandwidth), 25mbps (10MHz bandwidth)
*
MIMO Support
*
Temperature: -25 o C to 60 o C
*
Certifications: CE, GCF, NCC (Taiwan)
*
Carriers Approved: Vodafone, Telstra
*
Control Options: AT Commands,GobiAPI
*
Interfaces: USB
*
Voice Support: None
*
GPS Support: Yes
*
Dimensions: 51 x 30 x2.75 mm
