Original new Mc8090

Home > Original new Sierra Wireless air prime 3g HSDPA EDGE module MC8090
  • huawei E968 router
  • huawei E5220
  • ZTE MF283 Gateway
  • Sierra Wireless MC8765 module
  • Vodafone B2000 Router

Sierra Wireless module

  • Product Name:

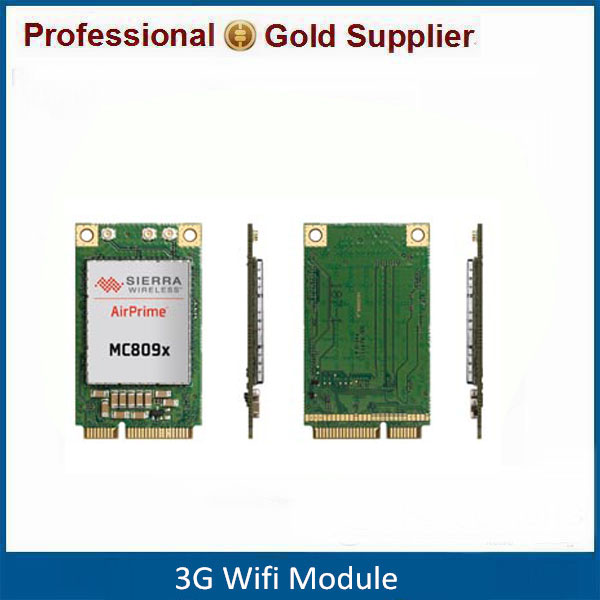

    Original new Sierra Wireless air prime 3g HSDPA EDGE module MC8090
  • Model No:

    MC8090
  • Unit Price:

    USD69
  • Mimimum Order Quantity:

    1picese
  • Payment Term:

    T/T, Western Union, MoneyGram, PAYPAL
  • Delivery Lead Time:

    3-7days after payment
  • Place Of Origin:

    shenzhen
Contact Now
Detailed Product Description

MC8090,3G-HSPA+ SMD Module with GPS forAmericas, APAC andJapan



MC8090 is a3GHSPA+ Quad band module with an integrated GPS receiver primarily forAmericas, APAC andJapan. Fall back to2G-GSM/GPRS/EDGE Quad band. Supported frequency bands:3G900/2100 and2G850/900/1800/1900. Form factor: PCIe Mini Card F1, 51x30 mm.

Ideal for industrial M2Mand mobile computing solutions, AirPrime® MC embedded modules deliver high speed connectivity, with a wide selection of advanced air interfaces, including LTE frequencies. Based on the PCI Express Mini Card standard with a USB interface, the MC Series modules offer an easy upgrade path to new network technologies and global access to high speed networks.

Features

Air interface:3G-HSPA+ with Rx Diversity,2G-GSM/GPRS/EDGE, GPS

3Gbands: 800/850/1900/2100 MHz

2Gbands: 850/900/1800/1900 MHz

Peak data rate: DL 14.4 Mbps, UL 5.76 Mbps

GPS: Qualcomm

Form factor: PCIe Mini Card F1, 51x30x4.5mm

Supply Voltage: 3.3 V nominal

Operating Temperature:-25°Cto +85°C



Control, software and features

Control options: AT Commands, CnS

Drivers: Android, Linux, Windows



Connectors

System connector: 52 position Mini PCIe

Antenna RF connector: 2x U.FL (Main RF, Aux RF/GPS)



Interfaces

USB 2.0 High Speed

Main radio disable

GPIO: 6

Flash LED output

SIM interface: 1.8/3V



Audio

Digital audio: I2S

Codec: FR, EFR, HR, AMR, CTM

Echo cancellation

Noise reduction

DTMF
