NTC-140W-02 4G M2M Router

PROCESSOR  STORAGE
• Powerful 720Mhz ARM Cortex A8 processor with 128MByte DDR2 RAM
• 256MByte Flash memory storage (~120MB available on board space for user storage)
• microSD card slot for expandable storage
OPERATING SYSTEM
• Embedded Linux Software Development Kit (SDK)
PEAK DATA SPEED
LTE: Category 3
• 100 Mbps 50 Mbps (Downlink/Uplink) (20Mhz bandwidth)
• 50 Mbps 25 Mbps (Downlink/Uplink) (10Mhz bandwidth)
HSPA+:
• 42 Mbps downlink (Category 24)
• 5.76 Mbps uplink (Category 6)
EDGE:
• 236 kbps throughput
CDMA 1xEV-DO Rev. A: (NTC-140W-01 only)
• 3.1 Mbps (forward channel)
• 1.8 Mbps (reverse channel)
CDMA 1x: (NTC-140W-01 only)
• 153 kbps (forward channel)
• 153 kbps (reverse channel)
• 14.4 kbps (circuit-switched data bearers)
CELLULAR BANDS
NTC-140W-01
LTE:
• Band 2 (1900MHz)
• Band 4 (AWS) (1700 2100MHz)
• Band 5 (850MHz)
• Band 13 (700MHz)
• Band 17 (700MHz)
• Band 25 (1900MHz G Block)
CDMA (EVDO Release 0 and EVDO Release A):
• BC0 (Cellular 800MHz)
• BC1 (PCS 1900MHz)
• BC10 (Secondary 800MHz)
UMTS/HSDPA/HSUPA/HSPA+DC-HSPA+:
• Band 1 (2100 MHz)
• Band 2 (1900 MHz)
• Band 4 (AWS 1700/2100MHz)
• Band 5 (850 MHz)
• Band 8 (900 MHz)
GSM/GPRS/EDGE:
• GSM 850 (850 MHz)
• EGSM 900 (900 MHz)
• DCS 1800 (1800 MHz)
• PCS 1900 (1900 MHz)
GNSS:
• GPS: 1575.42 MHz
• GLONASS: 1602 MHz
NTC-140W-02
LTE:
• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
UMTS/HSDPA/HSUPA/HSPA+DC-HSPA+:
• Band 1 (2100 MHz)
• Band 2 (1900 MHz)
• Band 5 (850 MHz)
• Band 8 (900 MHz)
GSM/GPRS/EDGE:
• GSM 850 (850 MHz)
• EGSM 900 (900 MHz)
• DCS 1800 (1800 MHz)
• PCS 1900 (1900 MHz)
GNSS:
• GPS: 1575.42 MHz
• GLONASS: 1602 MHz

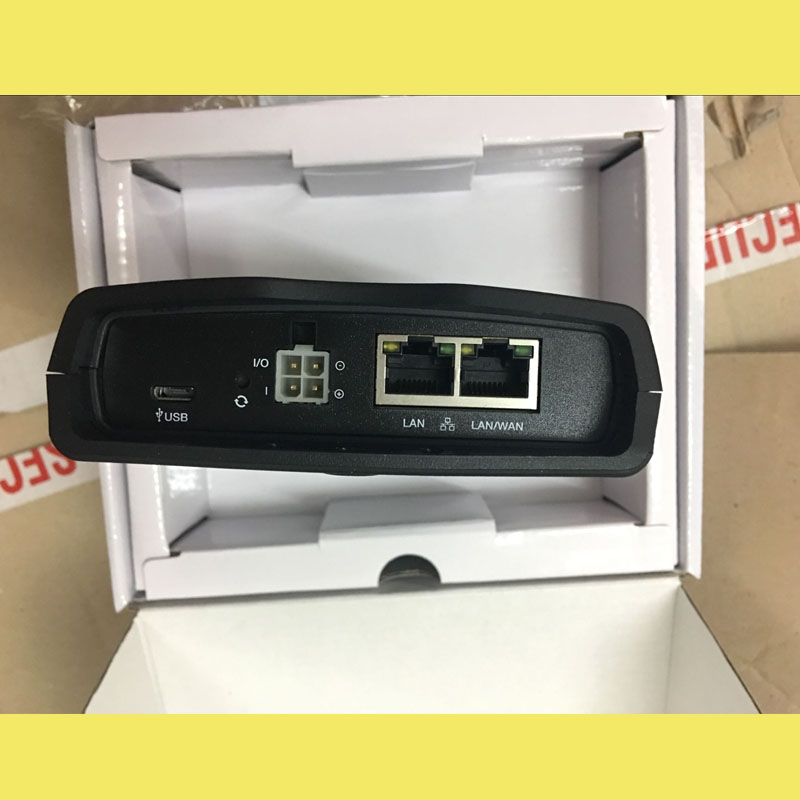

CONNECTIVITY
• 2 x 10/100/1000 Base-T Ethernet RJ45 ports with Auto MDIX
• Micro USB 2.0 OTG interface with 0.5A supply capability
• 1 x multipurpose I O pin
SIM CARD READER
• Lockable Tray Reader with Push-Button-to-Release
• Supports Mini USIM/SIM Format (2FF)
RESET BUTTON
• Reset button (recessed, requiring pen/paperclip) with three functions: Reboot, reboot into recovery mode, and reset unit to factory defaults

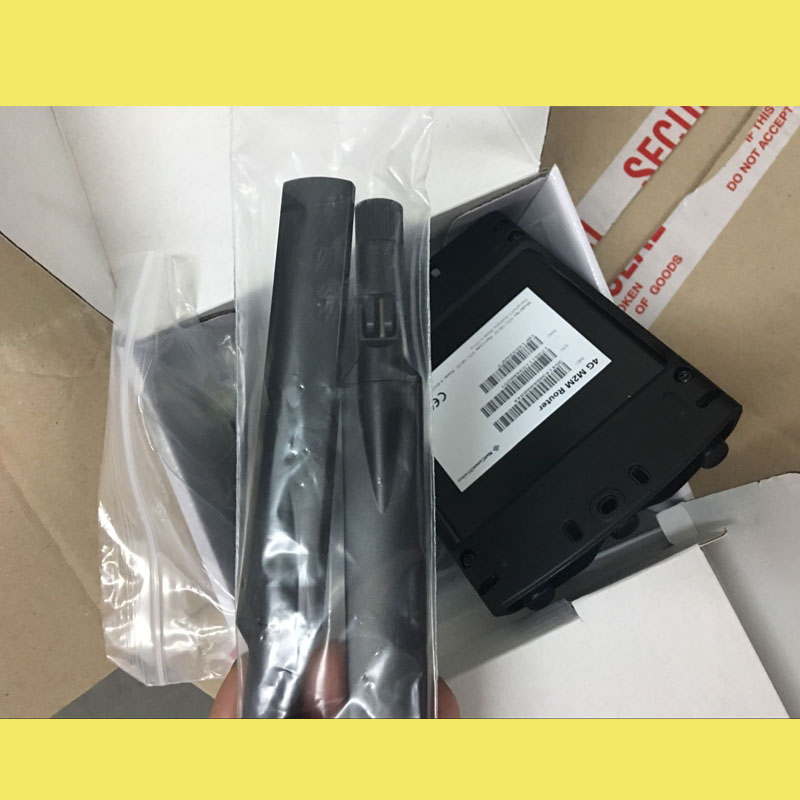

ANTENNA CONNECTORS
• 2x SMA connectors for 3G/4G
• 2x Reverse SMA connectors for Wireless LAN (MIMO)
• 1x SMA connector for GPS

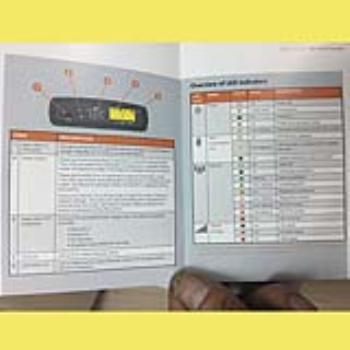

LED INDICATORS
• Tri-colour (Red/Amber/Green) LEDs. Power, WLAN, Mobile Broadband, Service Type and Signal Strength indicators
• Easy and clear LED status display for connection status, connected network type, and connection errors
CELLULAR
• Profile managed packet data connections
• NAT Disable for framed route configuration
• Transparent bridge mode using PPPoE to allow the router to transparently forward Public WAN IP address to a downstream device
• SIM Security Management (PIN configuration, enable and disable)
• Automatic and manual cellular band selection
• Automatic and manual operator selection
GPS
• Embedded GPS receiver (1575.42Mhz)
• SMA Connector for external passive or active GPS Antenna
• Active antenna voltage: 3.05V
• Maximum current: 50mA
• Tracking sensitivity under open sky: -161dBm
• Acquisition sensitivity under open sky: -145dBm
• Cold start sensitivity: -145dBm
• Time to first fix (TTFF): Cold 32s, Warm 29s, Hot 1s
WIFI/WLAN
• High throughput and extended range 802.11n 2T2R WiFi with transmission speeds up to 300Mbps
NETWORK & ROUTING
• Static Routing, RIP (v1/v2), Port Forwarding and DMZ
• Dynamic DNS
• VRRP for redundant router failover
• DHCP Server, including :
o Address reservation by MAC address
o Custom DNS server definitions
o DHCP Relay
o DHCP list display in Web-UI
o Advanced DHCP Option configuration (Option 42 NTP, Option 66 TFTP, Option 150, Option 160)
• Data Stream Manager providing ability to create mappings between input and output ports (e.g. Serial Port, SMS, GPS, USB) and perform required translation or data processing by each virtual tunnel.
• Modbus Server TCP/IP Gateway and Client TCP/IP Agent with up to 247 slaves connected to the Serial TCP/IP Gateway.
• Modbus RTU/ASCII frames support.
VPN
• PPTP Client for VPN connectivity to remote PPTP VPN Server
• IPSec tunnel termination (for up to 5 tunnels)
• GRE Tunnelling
• OpenVPN (Client, Server and P2P)
ADMINISTRATION & CONFIGURATION
• Web-based User Interface (HTTP/HTTPS) for full device status and configuration
• Password protected configuration file backup and restore for quick device configuration and device cloning
• Telnet Command Line Interface for status monitoring, configuration and control
• SNMP v1/v2 including cellular specific MIB, config and firmware download
• TR-069 Client for remote device configuration, configuration backup and restore, and firmware upgrade
• SMS Client (Send/Receive) including inbox, outbox
• Ping monitor watchdog (Reset connection on repeated ping failure)
• Diagnostic Log Viewer (remote and local)
• System Status and Security Logs
• NTP Server Support for network time sync of device's system clock
• Device User Guide stored on the device and accessible via the Web-based User Interface (HTTP/HTTPS)
• Advanced Diagnostics and Control via SMS
o Query status information - such as Signal Strength, WAN IP, Uptime and many more
o Configure device remotely via SMS - such as APN, authentication settings, and many more
o Execute commands via SMS - such as reboot, reset to defaults, go offline, and many more
o Secure SMS management using sender whitelisting and password management
o SMS acknowledgement replies for queries and commands
FIRMWARE MANAGEMENT
• Firmware Upgrade locally via LAN or remotely Over-The-Air (HTTP/HTTPS, SNMP, TR-069)
• Multiple firmware image storage on device and dynamic install
• Triggered firmware upgrade via SMS (initiate download & install from HTTP/HTTPS)
SOFTWARE DEVELOPMENT KIT
• Develop and install custom software applications
• Open Linux standard development environment
• Develop applications/scripting in standard ANSI C/Shell script and LUA
• Package manager built into Web-UI for Application installation/removal
• API (C, LUA and Shell libraries) to the unit's internal Runtime Database to allow full status monitoring configuration and control of the device from custom applications
TEMPERATURE
• Module Manufacturer's Recommended Operating Temperature: -40?C to +85?C
• Storage Temperature: -40°C to +85°C
POWER SUPPLY
• Power input and I O via 4 way Molex mini-fit connector
• DC Power (8 - 40V DC)
• 1x dedicated ignition input on 4 way connector
• Minimum power input rating of 6W via 4 way mini-fit connector. Recommended power input 12V 1.5A.
• Vehicle compatible protection on DC Input Jack. (ISO7637 standard)
• AC Power Supply available as optional accessory
DIMENSIONS & WEIGHT
• Device dimensions (excluding external antenna):143mm (L) x 107mm (W) x 34mm (D) / ~235g
MOUNTING OPTIONS
• Wall mount support in multiple orientations via embedded mounting holes
• DIN Rail mount support via plastic bracket included in box (Top hat section rail TH 35 IEC60715)

NTC-140W-01
• AT&T (NTC-140W-01-ATT)
• Verizon (NTC-140W-01-VZW)*
• Sprint (NTC-140W-01-SPT)*
* In progress
NTC-140W-02
• Telstra

• STC
