HUAWEI ME909

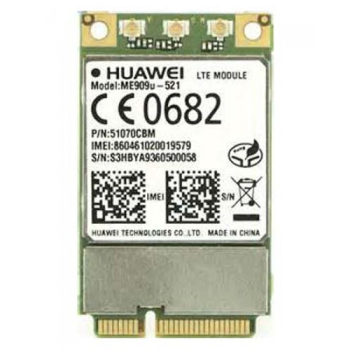

HUAWEI ME909 Mini PCI Express 4G LTE Module

HUAWEI ME909 family is high-quality designed LTE module in small size and Huawei standard LGA form factor which specially for industrial-grade M2Mapplications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

HUAWEI ME909 family support 100Mbps downlink data rate, include enhanced features like FOTA, USSD, IPV6/IPV4 and Huawei enhanced AT commands.

There are three variants which meet different market requirements:

HUAWEI ME909u-521 Technical Specifications:

* LTE: (B1/B2/B3/B5/B7/B8/B20), for European market

* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8

* EDGE/GPRS/GSM 1900/1800/900/850 MHz

HUAWEI ME909u-121 Technical Specifications:

* LTE (B1/B2/B4/B5/B8/B13/B17), forNorth Americamarket

* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8

* EDGE/GPRS/GSM 1900/1800/900/850 MHz

HUAWEI ME909u-721 Technical Specifications:

* LTE (B1/B11/B18/B19/B21), forJapanmarket

* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8

* EDGE/GPRS/GSM 1900/1800/900/850 MHz

DL 100Mbps/UL 50Mbps

Embedded TCP/IP Stack

PCM Voice, GPS, GLONASS

FOTA, USSD, IPV6/IPV4

LGA Package

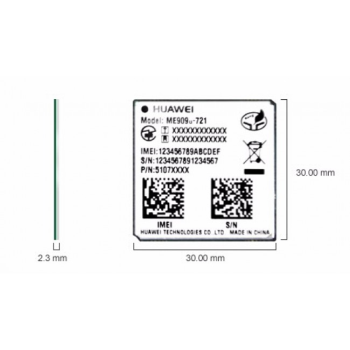

Size:30 mmx30 mmx2.3 mm,

Weight:<10g
