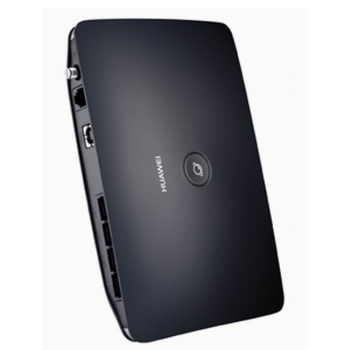

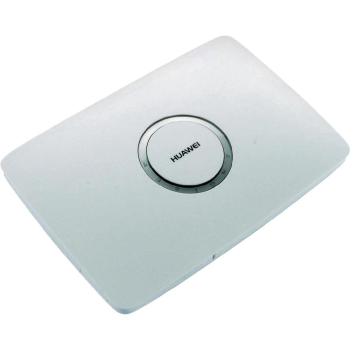

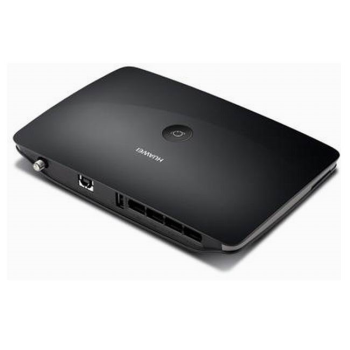

HUAWEI B660 HSDPA 7.2Mbps Router

Huawei B6603GHSDPA 7.2Mbps Wireless Router lets you easily set up a Wi-Fi hotspot using3GInternet access (HSDPA / HSUPA) and share it with multiple users. The Router can be achieved data rates of up to 7.2 Mbps download. The router is particularly useful when you want to set up a temporary hotspot. For example, even at the campsite enjoying the benefits that a router at home offers. The Huawei B6603GWireless Router features up to 4 LAN ports, a personal firewall and an RJ11 jack for an analog phone.

The Huawei B660 WiFi router via a data SIM card connected to the3Gnetwork, the SIM card is not included. Because the B660 is unlocked, you can use any data network. The device allows you to connect up to four computers or any other device via a LAN cable and other internet users via WiFi. In addition, you can also connect an external cell phone antenna that still enjoy a better quality of service.

Key features:

* Compact Wireless3GRouter

* Wi-Fi 802.11b/g/n

*3 in1: Wi-Fi + Router + Voice

* HSPA + / HSPA / UMTS 2100/900 MHz

* EDGE / GPRS / GSM: 1900/1800/900/850 MHz

*3GDownload speed up to 7.2 Mbps

*3GUpload up to 5.76 Mbps

* 4 LAN ports

* Powerful internal3Gand WLAN antenna

* Suitable for household,SOHOand SME

* External antenna connector (SMA-F)

* Firewall

* User Web Interface

* Unlock

Package Contents:

* Huawei B660 Wireless Router3GUMTS

* Quick Start Guide

Technical Specifications:

* Product Description: Huawei B660 Wireless Gateway - wireless router - cellular modem - 802.11b/g/n - desktop

* Device Type: Wireless router - wireless cellular modem - 4-port switch (integrated)

* Enclosure Type: Desktop

* Cellular Protocol: GSM, CDMA, GPRS, EDGE, HSDPA, HSUPA

* Data Link Protocol: Ethernet, Fast Ethernet, IEEE 802.11b, IEEE802.11g, IEEE 802.11n

* PowerAC 120/230 V2 A

* Dimensions (WxDxH):18 cmx12.3 cmx3.3 cm

* Weight:300 g

* Encryption AlgorithmAES, 128-bit WEP, 64-bit WEP, TKIP, WPA-PSK, WPA2-PSK

* Authentication Method: Radio Service Set ID (SSID)

* Features: Firewall protection, DHCP support, auto-uplink (auto MDI/MDI-X), MAC address filtering, URL filtering, IP address filtering

* Status IndicatorsPower, status, WLAN

Communications

* Type: Wireless cellular modem

* Cellular Protocol: GSM, CDMA, GPRS, EDGE, HSDPA, HSUPA

* Max Transfer Rate 7.2 Mbps

Expansion/Connectivity

* 4 RJ45 Ethernet ports +1 RJ11 CS voice port

* Expansion Slot(s): 1 (total)/ 1(free) x SIM card

* Aerial: AerialInternal integrated

* External3Gantenna interface (Antenna optional)

Power

* Power Device: Power adapter - external

* Voltage Required: AC 120/230 V

* Electric Current Required:2 A

* Power Consumption Operational: 10 Watt

Miscellaneous

* Width:18 cm

* Depth:12.3 cm

* Height:3.3 cm

Environmental Parameters

* Min Operating Temperature:-10 °C

* Max Operating Temperature:45 °C

*HumidityRangeOperating: 5 - 95%

SIM card slot:
