  • Product Name:

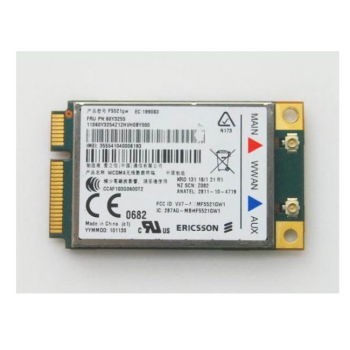

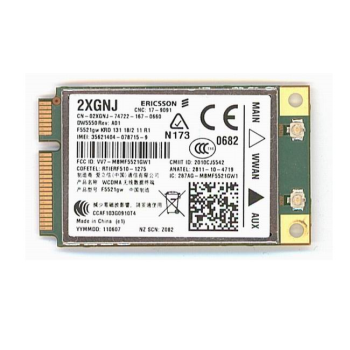

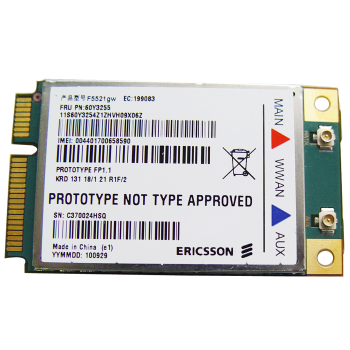

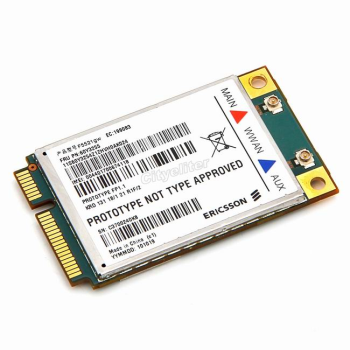

    Ericsson F5521gw UMTS GSM 2g 3g module
  • Model No:

    F5521gw
  • Unit Price:

    100USD
  • Mimimum Order Quantity:

    1
  • Payment Term:

    TT/WEST UNION
  • Delivery Lead Time:

    within 2-3 days after received the payment
  • Place Of Origin:

    China
Contact Now
Detailed Product Description

Ericsson F5521gw UMTS GSM2g3gmodule

UMTS/3Goperates in the following frequency ranges:

Uplink (Mobile Broadband Module to base-station)
800: 830 - 840 MHz
850: 824 - 849 MHz
900: 880 - 915 MHz
1900: 1850 - 1910 MHz
2100: 1920 - 1980 MHz


Downlink (Base-station toMobileBroadband Module)
800: 875 - 885 MHz
850: 869 - 894 MHz
900: 925 - 960 MHz
1900: 1930 - 1990 MHz
2100: 2110 - 2170 MHz


GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz
GSM Power Class:
MCS1-4 (GMSK): GSM850/900: Class 4/2W/33dBm GSM1800/1900: Class 1/1W/30dBm
MCS5-9 (8-PSK): GSM850/900: Class E2/0.5W/27dBm GSM1800/1900: Class E2/0.4W/26dBm
UMTS Power Class: Class 3 (24dBm)


Performance specifications:

Peak power consumption
SupportedVoltageRange3.0V - 3.6V (3.3V +/- 9%)
Nominal Operating Voltage 3.3V
Average Standby Current / Power (Radio off) <10mW
Average Idle Current / Power (Attached to network) <10mW
Data Transfer Peak Current / Peak Power <2.8W
UMTS: 384 kbps (Packet-Switched)/64 kbps (Circuit-Switched) DL; 384 kbps (Packet-Switched)/64 kbps (Circuit-Switched) UL
GSM: 14.4 kbps UL/DL
GPRS: 85.6 kbps DL; 42.8 kbps UL
EDGE: 247.4 kbps DL; 123.70 kbps UL
3G: GPRS/WCDMA/HSPA+; 21 Mbps DL; 5.76 Mbps UL
