Product Name:
4G F8A wireless openwrt mobile wifi routerModel No:
OEM openwrtUnit Price:
USD99Mimimum Order Quantity:
1picesePayment Term:
T/T, Western Union, MoneyGram, PAYPALDelivery Lead Time:
3-7days after paymentPlace Of Origin:
shenzhenOpenWrt4GROUTER
An overview
1. Interface, buttons, and LED lamp instructions

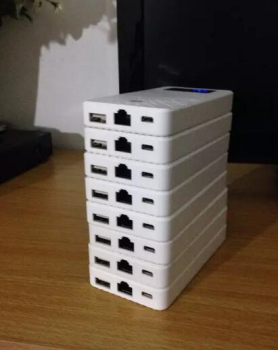

1) Interface
ID |
Name |
Function description |
1 |
RJ45 |
Ethernet port |
2 |
A Type USB |
External discharge Port |
3 |
Micro USB |
Internal battery charging |
4 |
TF card |
TF memory card |
5 |
SIM card |
SIM/USIM |
2) Key and Button
ID |
Name |
Function description |
1 |
Reset button |
After press three seconds, automatically restart and restore the factory settings |
2 |
Power ON/OFF |
Click, display the power and external discharge, long press 3 seconds or more, Start or Shutdow |

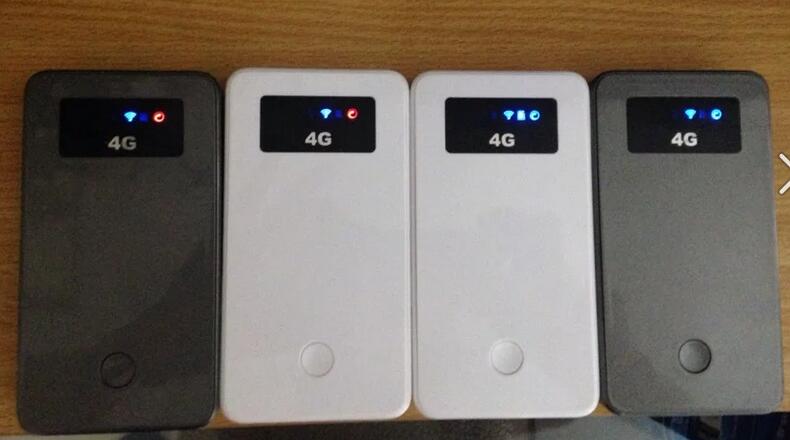

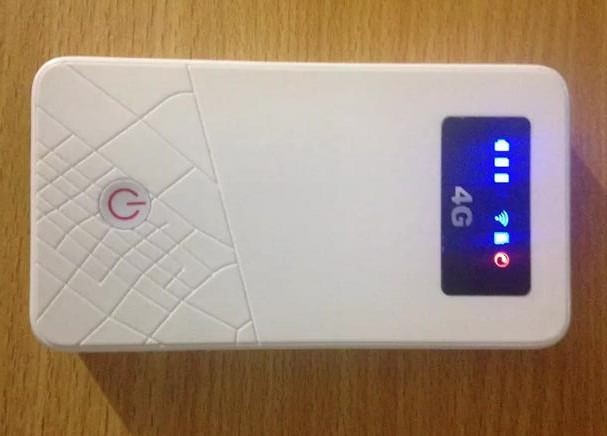

3) LED definition
ID |
Name |
Contains LED numbers |
State description |
Function description |
1 |
Working status display led |
1 blue led, 1 red led,
|
Display a variety of working status
|
Blue led slow flash: is identifying the Internet mode and LTE module Blue light,3g/4ghas been on the network. Red light slow flash: that the device is not connected to the network or not inserted SIM card. Red light flash: is being upgraded or not found in the4Gmodule |
2 |
WIFIStatus |
1 blue led |
Display WIFI working status。
|
Lights: show wifi working properly No lights: WIFI function off Blink: WIFI data transmission |
3 |
TFcard led |
1 blue led |
|
The blue led lights, said insert TF card and working properly, blue led no lights, no TF card insert or TF not working properly |
4 |
Electric and charging indicator led |
4 blue led |
Display battery charge level and charging status
|
Four blue light uniform distribution, on the plate edge exterior led is the first power level, press power key, display the current power |
2. Hardware specification

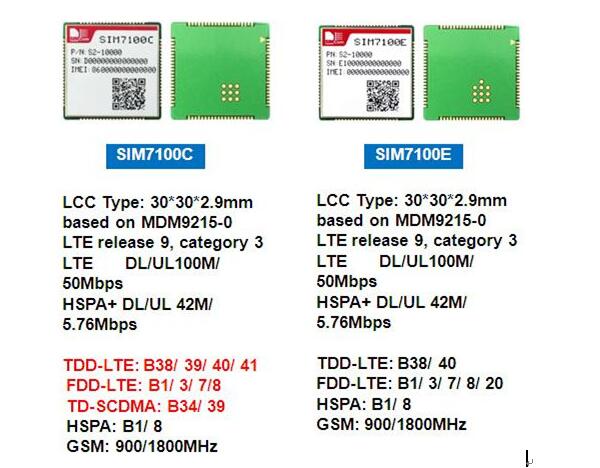

4G module PART: (F8A)
Support network system: FDD-LTE, TD-LTE, WCDMA, GSM
Support band:
GSM: 900/1800MHz
HSPA+: Band1/8MHz
TDD-LTE: Band38/40/41
FDD-LTE: Band1/3/7/8/20
4G module PART: (F8B)
Support network system: FDD-LTE, TD-LTE, WCDMA, GSM
3. WIFI PART
MT7620AIC
Support 802.11b/g/n
Support300Mwireless rate
Support32GTF memory card
Integrated with an Ethernet port
Memory Config: 16MB SPI FLASH, 128MB DDR2
Integrated Built in polymer lithium battery, capacity of about 5000MAH
Integrated charging feature, intelligent discharge.
4. Size and weight
Length * width * thickness :120mm* 64 * 16
Weight (including battery):160g
5. Software running platform
Running dual system: Based on the MTK-SDK platform and OPENWRT platform, the ZLMNET customization of the underlying software support, both extremely easy to switch.
Based on the OPENWRT platform by the expansion of TF memory card can be integrated into more than 2000 custom software applications.
Specific applications are: support multi SSID, WIFI probes, a variety of authentication platformaccess, FTP, SAMBA, VPN, WIFIDOG, COOVA/EASYCWMP, shadowsocks/redsocks, Nginx and other applications.
