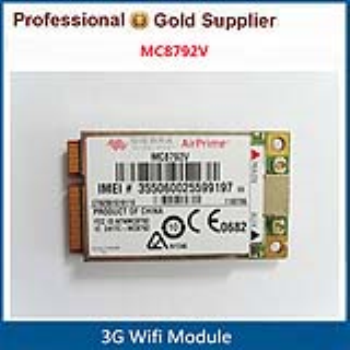

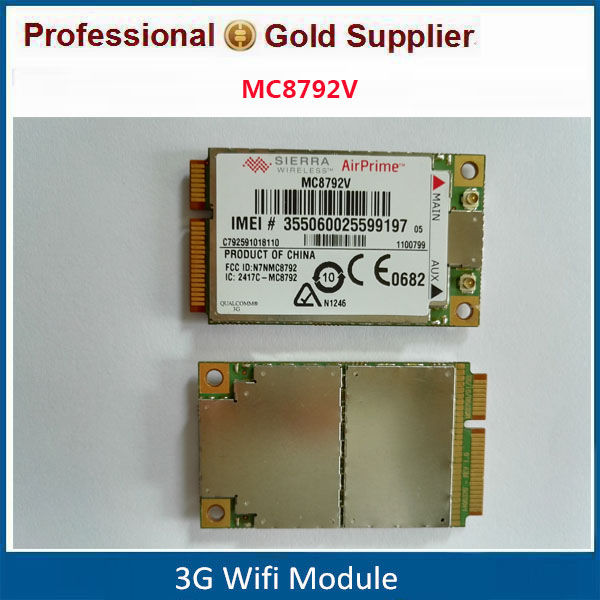

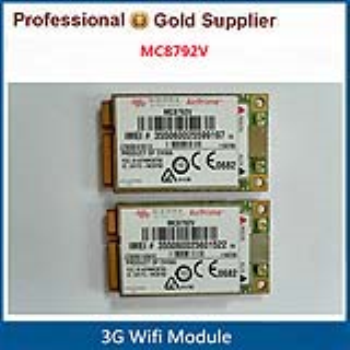

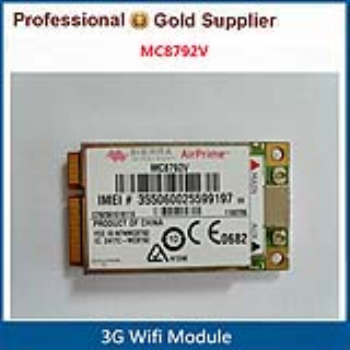

Sierra MC8792V PCI Express Mini Card

Sierra MC8792V PCI Express Mini Card is a HSDPA 7.2Mbps Module, and it's usually integrated into a variety of OEM devices to offer compleete wireless solutions over HSPA-capable UMTS networks. MC8792V PCI Express Mini Card can support tri-band UMTS/HSDPA 900/1900/2100MHz and 2G Qual-bands GSM/GPRS/EDGE networks. The MC8792V could provide HSDPA up to 7.2Mbps download for wireless data access, and 5.8Mbps uplink.

Sierra MC8792V Key Features:

* 3G/HSPA Support

* Peak downlink speeds up to 7.2 Mbps

* Peak uplink speeds up to 5.8 Mbps

* Uses MSM6290 chipset from QUALCOMM

* Full UART, TCP/IP, PAD stack

MC8792V Technical Specifications:

* Connectore: 52-Pin Edge Connector

* Network mode

-- 3G WCDMA 900/1900/2100MHz

-- 2G GPRS/GSM/EDGE 850/900/1800/1900MHz

-- GPS 1575MHz

* Digital Inputs/Outputs: 4 Programmanble GPIO

* Communications Interfaces: Serial (UART) Interface and USB 2.0

* Audio Interfaces: Analog audio (2 MIC, 2 SPK), PCM audio interface

* Cellular Radio

- Quad Band GSM 850/900/1800/1900 MHz

- Tri Band WCDMA 900/1900/2100 MHz

* Cellular Data

- UMTS with HSPA Category 8 (7.2 Mbps downlink)

- HSUPA Category 5 (2.0 Mbps uplink)

- EDGE/GPRS MS Class 12

* RF Connector

- UFL Socket (Main RF)

- UFL Socket (Diversity/GPS)

* Power Supply: Input Voltage Range: 3.0 ~ 3.6 V

* Dimensions/Size: L: 51 mm, W: 30 mm, D: 4.5 mm
