  • Product Name:

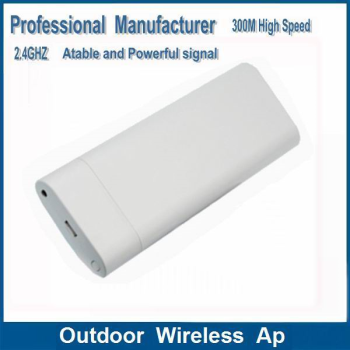

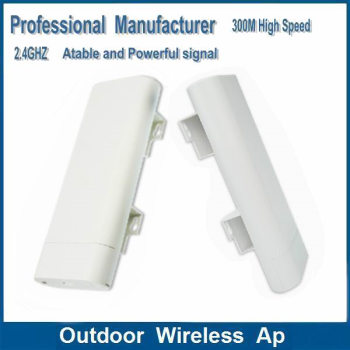

    2.4GHZ outdoor wifi ap
  • Model No:

    TX200
  • Unit Price:

    100USD
  • Mimimum Order Quantity:

    1
  • Payment Term:

    TT/WEST UNION
  • Delivery Lead Time:

    within 2-3 days after received the payment
  • Place Of Origin:

    China
Contact Now
Detailed Product Description

2.4GHZ outdoor wifi ap


CPU

Atheros AR 9341

RAM

64MB

Flash

8MB

Standards

IEEE802.11n,IEEE802.11g,IEEE802.11b

Frequency band

2.4GHz,IEEE 802.11b/g/n

RF Power output

23dbm±1.5dbm                 200mw

Ethernet physical rate

10/100Mbps

PoE

IEEE802.3af

Frequency bandwidth

20 or 20/40MHz

Wireless mode

11b,11g, 11b/g, 11b/g/n

Operating Temperature

 -30Cto +80C

Relative Humidity(Operational)

5 to 95% Condensing

Factory Default Settings

Support factory Default Settings

Ethernet

RJ-45

Pass-through port

RJ-45 to RJ-45

Power

DC/PoE

Wi-Fi

2.4GHz,IEEE 802.11b/g/n

MIMO

2x2

Space Stream

2 SS

Antenna

internal, Gain 12dBi

RX Sensitivity

IEEE 802.11b11Mbps  -84dBm
IEEE802.11g54Mbps -71dBm
IEEE 802.11n 2.4GHz
            HT20  -67dBm
            HT40  -64dBm

Software

WEB 2.0 UI smart router style

Support

Wireless AP mode;AP bridge

Support

WDS

Support

Wireless AP+AP Client bridge mode

Support

Wireless router mode

Support

AP client router mode

WIFI Features

Support

Wireless on-off switch

Support

QOS

Support

80211 b/g/nSupport 11n only

Support

Multi SSID

Support

Hide SSID

Support

RTS/CTS thehold

Support

automatic channel selection and manually specify

Support

HT 20/40

Support

Power transmitting power

Support

WMM

Support

MAC address black and white list filtering based on SSID

Support

AP Client remote AP scanning

Support

associated client-server list display

Wireless safety

Support

64/128-bit WEP OPEN/SHARE

Support

WPA-PSK/WPA2-PSK

Support

WPA-PSK/WPA2-PSK mixed mode

Support

AUTO AES TKIP and Mixed encryption algorithm

Network features

Support

WAN port Static IPDHCP clientPPPoE client

Support

AP Client BridgeStatic IP DHCP clientPPPOE
LAN port

Support

Static IP DHCP client

Support

DHCP server user-defined dhcp option

Support

STP Spanning tree protocol

Support

network diagnosis

Firewall Features

Support

SYN-FLOOD Protection

Support

Port forwarding

Support

user-defined the firewall rules

Statistics and reports

Support

System info

Support

NI Network Interface & connection statistics

Support

DHCP  Distribution statistics

Support

Wireless Status Accounting

Support

Associated client statistics

Support

INTERFACE Flow statistical

Management requirement

Support

Configuration backup and RECOVERY

Support

factory reset

Support

Firmware Upgrade Firmware integrity detection

Support

Via wan port  Remote Web management and telnet management

others

refer to unit
